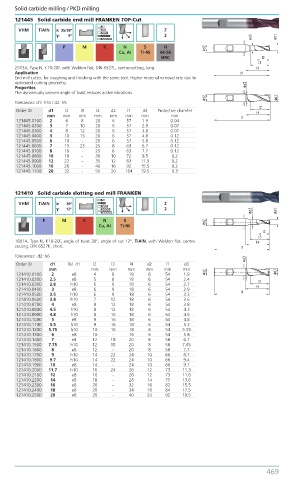

Page 478 - Benma | Blue book 5.0

Solid carbide milling / PKD milling Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
121445 Solid carbide end mill FRANKEN TOP-Cut

VHM TiAIN λ: 35/38º Z
γ: 9º 2
P M K N S H
Cu, AI Ti-Ni 44-56
HRC
2513A, Type N, K10-20F, with Weldon flat, DIN 6527L, centre-cutting, long.
Application
End mill cutter, for roughing and finishing with the same tool. Higher material removal rate due to
optimised cutting geometry.
Properties
The dynamically uneven angle of twist reduces active vibrations.
Tolerances: d1: h10 / d2: h5
Order ID d1 l2 l3 l4 d2 l1 d3 Protective chamfer
mm mm mm mm mm mm mm mm
121445.0100 2 6 8 20 6 57 1.9 0.04
121445.0200 3 7 10 20 6 57 2.9 0.07
121445.0300 4 8 12 20 6 57 3.8 0.07
121445.0400 5 10 15 20 6 57 4.8 0.12
121445.0500 6 10 - 20 6 57 5.8 0.12
121445.0600 7 13 23 25 8 63 6.7 0.12
121445.0700 8 16 - 25 8 63 7.7 0.12
121445.0800 10 19 - 30 10 72 9.5 0.2
121445.0900 12 22 - 35 12 83 11.5 0.2
121445.1000 16 26 - 40 16 92 15.5 0.2
121445.1100 20 32 - 50 20 104 19.5 0.3

121410 Solid carbide slotting end mill FRANKEN
VHM TiAIN λ: 30º Z
γ: 12º 2
P M K N S
Cu, AI Ti-Ni

1801A, Type N, K10-20F, angle of twist 30°, angle of cut 12°, TiAlN, with Weldon flat, centre-
cutting, DIN 6527K, short.
Tolerances: d2: h6
Order ID d1 Tol. d1 l2 l3 l4 d2 l1 d3
mm mm mm mm mm mm mm
121410.0100 2 e8 4 8 18 6 54 1.9
121410.0200 2.5 e8 5 8 18 6 54 2.4
121410.0300 2.8 h10 5 9 18 6 54 2.7
121410.0400 3 e8 6 9 18 6 54 2.9
121410.0500 3.5 h10 6 9 18 6 54 3.3
121410.0600 3.8 h10 7 12 18 6 54 3.6
121410.0700 4 e8 8 12 18 6 54 3.8
121410.0800 4.5 h10 8 12 18 6 54 4.3
121410.0900 4.8 h10 8 16 18 6 54 4.6
121410.1000 5 e8 9 16 18 6 54 4.8
121410.1100 5.5 h10 9 16 18 6 54 5.3
121410.1200 5.75 h10 10 16 18 6 54 5.55
121410.1300 6 e8 10 - 16 6 54 5.8
121410.1400 7 e8 12 18 20 8 58 6.7
121410.1500 7.75 h10 12 18 20 8 58 7.45
121410.1600 8 e8 12 - 20 8 58 7.7
121410.1700 9 h10 14 22 24 10 66 8.7
121410.1800 9.7 h10 14 22 24 10 66 9.4
121410.1900 10 e8 14 - 24 10 66 9.7
121410.2000 11.7 h10 16 24 26 12 73 11.3
121410.2100 12 e8 16 - 26 12 73 11.6
121410.2200 14 e8 18 - 28 14 75 13.6
121410.2300 16 e8 20 - 32 16 82 15.5
121410.2400 18 e8 20 - 34 18 84 17.5
121410.2500 20 e8 26 - 40 20 92 19.5

Brütsch/Rüegger Tools Ltd. • Heinrich Stutz-Strasse 20 • P.O. Box • CH-8902 Urdorf • www.brw.ch 469
