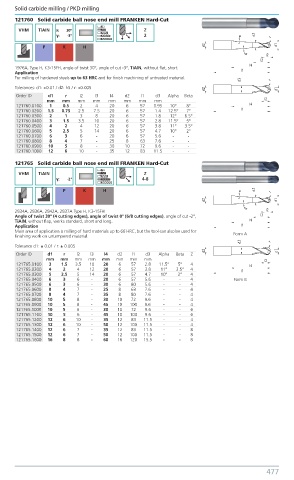

Page 486 - Benma | Blue book 5.0

Solid carbide milling / PKD milling Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
121760 Solid carbide ball nose end mill FRANKEN Hard-Cut

VHM TiAIN λ: 30º Z
γ: -3º 2
P K H

1976A, Type H, K3-15FH, angle of twist 30°, angle of cut -3°, TiAlN, without flat, short.
Application
For milling of hardened steels up to 63 HRC and for finish machining of untreated material.
Tolerances: d1: ±0.01 / d2: h5 / r: ±0.005
Order ID d1 r l2 l3 l4 d2 l1 d3 Alpha Beta
mm mm mm mm mm mm mm mm
121760.0100 1 0.5 2 4 20 6 57 0.95 10° 8°
121760.0200 1.5 0.75 2.5 7.5 20 6 57 1.4 12.5° 7°
121760.0300 2 1 3 8 20 6 57 1.8 12° 6.5°
121760.0400 3 1.5 3.5 10 20 6 57 2.8 11.5° 5°
121760.0500 4 2 4 12 20 6 57 3.8 11° 3.5°
121760.0600 5 2.5 5 14 20 6 57 4.7 10° 2°
121760.0700 6 3 6 - 20 6 57 5.6 - -
121760.0800 8 4 7 - 25 8 63 7.6 - -
121760.0900 10 5 8 - 30 10 72 9.6 - -
121760.1000 12 6 10 - 35 12 83 11.5 - -
121765 Solid carbide ball nose end mill FRANKEN Hard-Cut
VHM TiAIN Z
γ: -2º 4-8
P K H

2834A, 2836A, 2842A, 2837A Type H, K3-15FH
Angle of twist 30° (4 cutting edges), angle of twist 0° (6/8 cutting edges), angle of cut -2°,
TiAlN, without flap, works standard, short and long.
Application
Main area of application is milling of hard materials up to 66 HRC, but the tool can also be used for Form A
finishing work on untempered material.
Tolerance d1: ± 0.01 / r: ± 0.005
Order ID d1 r l2 l3 l4 d2 l1 d3 Alpha Beta Z
mm mm mm mm mm mm mm mm
121765.0100 3 1.5 3.5 10 20 6 57 2.8 11.5° 5° 4
121765.0200 4 2 4 12 20 6 57 3.8 11° 3.5° 4
121765.0300 5 2.5 5 14 20 6 57 4.7 10° 2° 4
121765.0400 6 3 6 - 20 6 57 5.6 - - 4 Form B
121765.0500 6 3 6 - 30 6 80 5.6 - - 4
121765.0600 8 4 7 - 25 8 63 7.6 - - 4
121765.0700 8 4 7 - 35 8 80 7.6 - - 4
121765.0800 10 5 8 - 30 10 72 9.6 - - 4
121765.0900 10 5 8 - 45 10 100 9.6 - - 4
121765.1000 10 5 6 - 30 10 72 9.6 - - 6
121765.1100 10 5 6 - 45 10 100 9.6 - - 6
121765.1200 12 6 10 - 35 12 83 11.5 - - 4
121765.1300 12 6 10 - 50 12 100 11.5 - - 4
121765.1400 12 6 7 - 35 12 83 11.5 - - 8
121765.1500 12 6 7 - 50 12 100 11.5 - - 8
121765.1600 16 8 8 - 60 16 120 15.5 - - 8

Brütsch/Rüegger Tools Ltd. • Heinrich Stutz-Strasse 20 • P.O. Box • CH-8902 Urdorf • www.brw.ch 477
