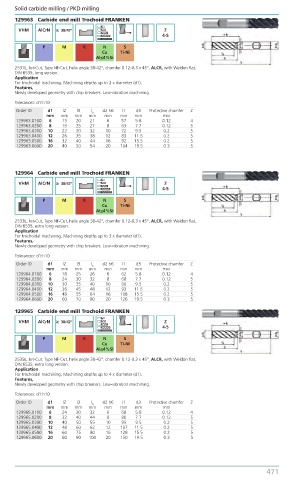

Solid carbide milling / PKD milling Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
129963 Carbide end mill Trochoid FRANKEN

VHM AlCrN λ: 38/42º Z
4-5
P M K N S
Cu Ti-Ni
AI≤4%Si
2531L, Jet-Cut, Type NF-Cut, helix angle 38-42°, chamfer 0.12-0.3 x 45°, ALCR, with Weldon flat,
DIN 6535, long version.
Application
For trochoidal machining. Machining depths up to 2 x diameter (d1).
Features,
Newly developed geometry with chip breakers. Low-vibration machining.
Tolerances: d1:h10
Order ID d1 l2 l3 l A d2 h6 l1 d3 Protective chamfer Z
mm mm mm mm mm mm mm mm
129963.0100 6 13 20 21 6 57 5.8 0.12 4
129963.0200 8 19 25 27 8 63 7.7 0.12 5
129963.0300 10 22 30 32 10 72 9.5 0.2 5
129963.0400 12 26 35 38 12 83 11.5 0.2 5
129963.0500 16 32 40 44 16 92 15.5 0.2 5
129963.0600 20 40 50 54 20 104 19.5 0.3 5

129964 Carbide end mill Trochoid FRANKEN
VHM AlCrN λ: 38/42º Z
4-5

P M K N S
Cu Ti-Ni
AI≤4%Si
2533L, Jet-Cut, Type NF-Cut, helix angle 38-42°, chamfer 0.12-0.3 x 45°, ALCR, with Weldon flat,
DIN 6535, extra long version.
Application
For trochoidal machining. Machining depths up to 3 x diameter (d1).
Features,
Newly developed geometry with chip breakers. Low-vibration machining.
Tolerances: d1:h10
Order ID d1 l2 l3 l A d2 h6 l1 d3 Protective chamfer Z
mm mm mm mm mm mm mm mm
129964.0100 6 18 25 26 6 62 5.8 0.12 4
129964.0200 8 24 30 32 8 68 7.7 0.12 5
129964.0300 10 30 35 40 10 80 9.5 0.2 5
129964.0400 12 36 45 48 12 93 11.5 0.2 5
129964.0500 16 48 55 64 16 108 15.5 0.2 5
129964.0600 20 60 70 80 20 126 19.5 0.3 5
129965 Carbide end mill Trochoid FRANKEN
VHM AlCrN λ: 38/42º Z
4-5

P M K N S
Cu Ti-Ni
AI≤4%Si
2535L, Jet-Cut, Type NF-Cut, helix angle 38-42°, chamfer 0.12-0.3 x 45°, ALCR, with Weldon flat,
DIN 6535, extra long version.
Application
For trochoidal machining. Machining depths up to 4 x diameter (d1).
Features,
Newly developed geometry with chip breakers. Low-vibration machining.
Tolerances: d1:h10
Order ID d1 l2 l3 l A d2 h6 l1 d3 Protective chamfer Z
mm mm mm mm mm mm mm mm
129965.0100 6 24 30 32 6 68 5.8 0.12 4
129965.0200 8 32 40 44 8 80 7.7 0.12 5
129965.0300 10 40 50 55 10 95 9.5 0.2 5
129965.0400 12 48 60 62 12 107 11.5 0.2 5
129965.0500 16 64 75 80 16 128 15.5 0.2 5
129965.0600 20 80 90 100 20 150 19.5 0.3 5
