Solid carbide milling / PKD milling Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch

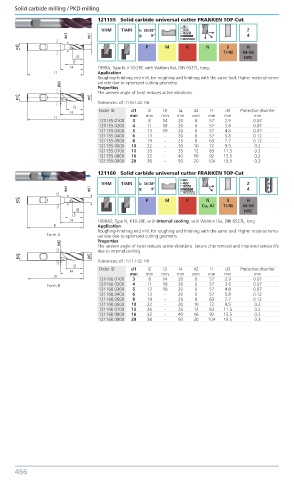

121155 Solid carbide universal cutter FRANKEN TOP-Cut

VHM TiAIN λ: 35/38º Z
γ: 9º 4
P M K N S H
Ti-Ni 44-56
HRC
1999A, Type N, K10-20F, with Weldon flat, DIN 6527L, long.
Application
Roughing-finishing end mill, for roughing and finishing with the same tool. Higher material remo-
val rate due to optimized cutting geometry.
Properties
The uneven angle of twist reduces active vibrations.
Tolerances: d1: h10 / d2: h6
Order ID d1 l2 l3 l4 d2 l1 d3 Protective chamfer
mm mm mm mm mm mm mm mm
121155.0100 3 8 14 20 6 57 2.9 0.07
121155.0200 4 11 18 20 6 57 3.8 0.07
121155.0300 5 13 19 20 6 57 4.8 0.07
121155.0400 6 13 - 20 6 57 5.8 0.12
121155.0500 8 19 - 25 8 63 7.7 0.12
121155.0600 10 22 - 30 10 72 9.5 0.2
121155.0700 12 26 - 35 12 83 11.5 0.2
121155.0800 16 32 - 40 16 92 15.5 0.2
121155.0900 20 38 - 50 20 104 19.5 0.3
121160 Solid carbide universal cutter FRANKEN TOP-Cut
VHM TiAIN λ: 35/38º Z
γ: 9º 4
P M K N S H
Cu, AI Ti-Ni 44-56
HRC
1999AZ, Type N, K10-20F, with internal cooling, with Weldon flat, DIN 6527L, long.
Application
Roughing-finishing end mill, for roughing and finishing with the same tool. Higher material remo-
Form A val rate due to optimized cutting geometry.
Properties
The uneven angle of twist reduces active vibrations. Secure chip removal and improved service life
due to internal cooling.
Tolerances: d1: h11 / d2: h6
Order ID d1 l2 l3 l4 d2 l1 d3 Protective chamfer
mm mm mm mm mm mm mm mm
121160.0100 3 8 14 20 6 57 2.9 0.07
Form B 121160.0200 4 11 18 20 6 57 3.8 0.07
121160.0300 5 13 19 20 6 57 4.8 0.07
121160.0400 6 13 - 20 6 57 5.8 0.12
121160.0500 8 19 - 25 8 63 7.7 0.12
121160.0600 10 22 - 30 10 72 9.5 0.2
121160.0700 12 26 - 35 12 83 11.5 0.2
121160.0800 16 32 - 40 16 92 15.5 0.2
121160.0900 20 38 - 50 20 104 19.5 0.3
