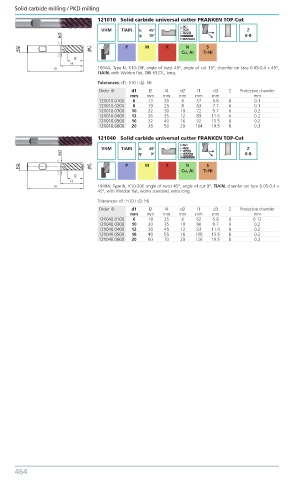

Solid carbide milling / PKD milling Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
121010 Solid carbide universal cutter FRANKEN TOP-Cut

VHM TiAIN λ: 45º Z
γ: 15º 6-8
P M K N S
Cu, AI Ti-Ni

1864A, Type N, K10-20F, angle of twist 45°, angle of cut 15°, chamfer on face 0.05-0.4 x 45°,
TiAlN, with Weldon flat, DIN 6527L, long.
Tolerances: d1: h10 / d2: h6
Order ID d1 l2 l4 d2 l1 d3 Z Protective chamfer
mm mm mm mm mm mm mm
121010.0100 6 13 20 6 57 5.8 6 0.1
121010.0200 8 19 25 8 63 7.7 6 0.1
121010.0300 10 22 30 10 72 9.7 6 0.2
121010.0400 12 26 35 12 83 11.6 6 0.2
121010.0500 16 32 40 16 92 15.5 6 0.2
121010.0600 20 38 50 20 104 19.5 8 0.3
121040 Solid carbide universal cutter FRANKEN TOP-Cut
VHM TiAIN λ: 45º Z
γ: 9º 6-8

P M K N S
Cu, AI Ti-Ni

1949A, Type N, K10-20F, angle of twist 45°, angle of cut 9°, TiAlN, chamfer on face 0.05-0.4 x
45°, with Weldon flat, works standard, extra long.
Tolerances: d1: h10 / d2: h6
Order ID d1 l2 l4 d2 l1 d3 Z Protective chamfer
mm mm mm mm mm mm mm
121040.0100 6 18 25 6 62 5.8 6 0.12
121040.0300 10 30 35 10 80 9.7 6 0.2
121040.0400 12 36 45 12 93 11.6 6 0.2
121040.0500 16 48 55 16 108 15.5 6 0.2
121040.0600 20 60 70 20 126 19.5 8 0.3
