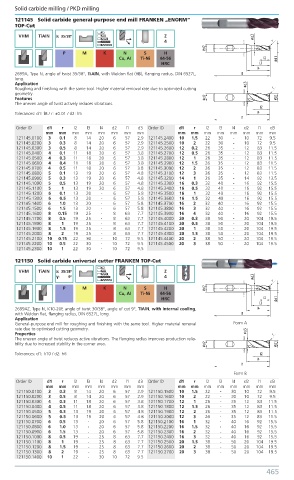

Page 474 - Benma | Blue book 5.0

Solid carbide milling / PKD milling Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
121145 Solid carbide general-purpose end mill FRANKEN „ENORM“
TOP-Cut

VHM TiAIN λ: 35/38º Z
4
P M K N S H
Cu, AI Ti-Ni 44-56
HRC
2699A, Type N, angle of twist 35/38°, TiAlN, with Weldon flat (HB), flanging radius, DIN 6527L,
long.
Application
Roughing and finishing with the same tool. Higher material removal rate due to optimised cutting
geometry.
Features
The uneven angle of twist actively reduces vibrations.
Tolerances: d1: f8 / r: ±0.01 / d2: h5

Order ID d1 r l2 l3 l4 d2 l1 d3 Order ID d1 r l2 l3 l4 d2 l1 d3
mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm
121145.0100 3 0.1 8 14 20 6 57 2.9 121145.2400 10 1.5 22 30 - 10 72 9.5
121145.0200 3 0.3 8 14 20 6 57 2.9 121145.2500 10 2 22 30 - 10 72 9.5
121145.0300 3 0.5 8 14 20 6 57 2.9 121145.2600 12 0.2 26 35 - 12 83 11.5
121145.0400 4 0.1 11 18 20 6 57 3.8 121145.2700 12 0.5 26 35 - 12 83 11.5
121145.0500 4 0.3 11 18 20 6 57 3.8 121145.2800 12 1 26 35 - 12 83 11.5
121145.0600 4 0.4 11 18 20 6 57 3.8 121145.2900 12 1.5 26 35 - 12 83 11.5
121145.0700 4 0.5 11 18 20 6 57 3.8 121145.3000 12 2 26 35 - 12 83 11.5
121145.0800 5 0.1 13 19 20 6 57 4.8 121145.3100 12 3 26 35 - 12 83 11.5
121145.0900 5 0.3 13 19 20 6 57 4.8 121145.3200 14 1 26 35 - 14 92 13.5
121145.1000 5 0.5 13 19 20 6 57 4.8 121145.3300 16 0.3 32 40 - 16 92 15.5
121145.1100 5 1 13 19 20 6 57 4.8 121145.3400 16 0.5 32 40 - 16 92 15.5
121145.1200 6 0.1 13 20 - 6 57 5.8 121145.3500 16 1 32 40 - 16 92 15.5
121145.1300 6 0.5 13 20 - 6 57 5.8 121145.3600 16 1.5 32 40 - 16 92 15.5
121145.1400 6 1.0 13 20 - 6 57 5.8 121145.3700 16 2 32 40 - 16 92 15.5
121145.1500 6 1.5 13 20 - 6 57 5.8 121145.3800 16 3 32 40 - 16 92 15.5
121145.1600 8 0.15 19 25 - 8 63 7.7 121145.3900 16 4 32 40 - 16 92 15.5
121145.1700 8 0.5 19 25 - 8 63 7.7 121145.4000 20 0.3 38 50 - 20 104 19.5
121145.1800 8 1 19 25 - 8 63 7.7 121145.4100 20 0.5 38 50 - 20 104 19.5
121145.1900 8 1.5 19 25 - 8 63 7.7 121145.4200 20 1 38 50 - 20 104 19.5
121145.2000 8 2 19 25 - 8 63 7.7 121145.4300 20 1.5 38 50 - 20 104 19.5
121145.2100 10 0.15 22 30 - 10 72 9.5 121145.4400 20 2 38 50 - 20 104 19.5
121145.2200 10 0.5 22 30 - 10 72 9.5 121145.4500 20 3 38 50 - 20 104 19.5
121145.2300 10 1 22 30 - 10 72 9.5

121150 Solid carbide universal cutter FRANKEN TOP-Cut
VHM TiAIN λ: 35/38º Z
γ: 9º 4
P M K N S H
Cu, AI Ti-Ni 44-56
HRC
2699AZ, Type N, K10-20F, angle of twist 30/38°, angle of cut 9°, TiAlN, with internal cooling,
with Weldon flat, flanging radius, DIN 6527L, long.
Application
General-purpose end mill for roughing and finishing with the same tool. Higher material removal Form A
rate due to optimised cutting geometry.
Properties
The uneven angle of twist reduces active vibrations. The flanging radius improves production relia-
bility due to increased stability in the corner area.
Tolerances: d1: h10 / d2: h6

Form B
Order ID d1 r l2 l3 l4 d2 l1 d3 Order ID d1 r l2 l3 l4 d2 l1 d3
mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm
121150.0100 3 0.3 8 14 20 6 57 2.9 121150.1500 10 1.5 22 - 30 10 72 9.5
121150.0200 3 0.5 8 14 20 6 57 2.9 121150.1600 10 2 22 - 30 10 72 9.5
121150.0300 4 0.3 11 18 20 6 57 3.8 121150.1700 12 1 26 - 35 12 83 11.5
121150.0400 4 0.5 11 18 20 6 57 3.8 121150.1800 12 1.5 26 - 35 12 83 11.5
121150.0500 5 0.3 13 19 20 6 57 4.8 121150.1900 12 2 26 - 35 12 83 11.5
121150.0600 5 0.5 13 19 20 6 57 4.8 121150.2000 12 3 26 - 35 12 83 11.5
121150.0700 6 0.5 13 - 20 6 57 5.8 121150.2100 16 1 32 - 40 16 92 15.5
121150.0800 6 1.0 13 - 20 6 57 5.8 121150.2200 16 1.5 32 - 40 16 92 15.5
121150.0900 6 1.5 13 - 20 6 57 5.8 121150.2300 16 2 32 - 40 16 92 15.5
121150.1000 8 0.5 19 - 25 8 63 7.7 121150.2400 16 3 32 - 40 16 92 15.5
121150.1100 8 1 19 - 25 8 63 7.7 121150.2500 20 1.5 38 - 50 20 104 19.5
121150.1200 8 1.5 19 - 25 8 63 7.7 121150.2600 20 2 38 - 50 20 104 19.5
121150.1300 8 2 19 - 25 8 63 7.7 121150.2700 20 3 38 - 50 20 104 19.5
121150.1400 10 1 22 - 30 10 72 9.5
