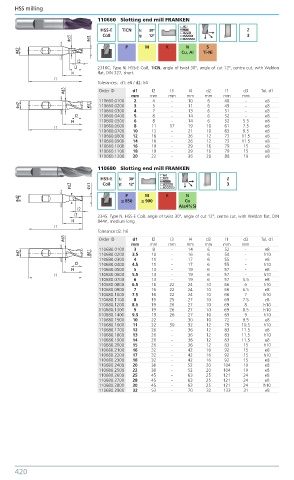

HSS milling Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
110660 Slotting end mill FRANKEN

HSS-E TiCN λ: 30º Z
Co8 γ: 12º 3
P M K N S
Cu, AI Ti-Ni

2310C, Type N, HSS-E Co8, TiCN, angle of twist 30°, angle of cut 12°, centre cut, with Weldon
flat, DIN 327, short.
Tolerances: d1: e8 / d2: h6
Order ID d1 l2 l3 l4 d2 l1 d3 Tol. d1
mm mm mm mm mm mm mm
110660.0100 2 4 - 10 6 48 - e8
110660.0200 3 5 - 11 6 49 - e8
110660.0300 4 7 - 13 6 51 - e8
110660.0400 5 8 - 14 6 52 - e8
110660.0500 6 8 - 14 6 52 5.5 e8
110660.0600 8 11 17 19 10 61 7.5 e8
110660.0700 10 13 - 21 10 63 9.5 e8
110660.0800 12 16 - 26 12 73 11.5 e8
110660.0900 14 16 - 26 12 73 11.5 e8
110660.1000 16 19 - 29 16 79 15 e8
110660.1100 18 19 - 29 16 79 15 e8
110660.1200 20 22 - 36 20 88 19 e8
110680 Slotting end mill FRANKEN
HSS-E λ: 30º Z
Co8 γ: 12º 3

P M K N
≤ 850 ≤ 900 Cu
AI≤4%Si
2345, Type N, HSS-E Co8, angle of twist 30°, angle of cut 12°, centre cut, with Weldon flat, DIN
844K, medium long.
Tolerance d2: h6
Order ID d1 l2 l3 l4 d2 l1 d3 Tol. d1
mm mm mm mm mm mm mm
110680.0100 3 8 - 14 6 52 - e8
110680.0200 3.5 10 - 16 6 54 - h10
110680.0300 4 11 - 17 6 55 - e8
110680.0400 4.5 11 - 17 6 55 - h10
110680.0500 5 13 - 19 6 57 - e8
110680.0600 5.5 13 - 19 6 57 - h10
110680.0700 6 13 - 19 6 57 5.5 e8
110680.0800 6.5 16 22 24 10 66 6 h10
110680.0900 7 16 22 24 10 66 6.5 e8
110680.1000 7.5 16 22 24 10 66 7 h10
110680.1100 8 19 25 27 10 69 7.5 e8
110680.1200 8.5 19 26 27 10 69 8 h10
110680.1300 9 19 26 27 10 69 8.5 h10
110680.1400 9.5 19 26 27 10 69 9 h10
110680.1500 10 22 - 30 10 72 9.5 e8
110680.1600 11 22 30 32 12 79 10.5 h10
110680.1700 12 26 - 36 12 83 11.5 e8
110680.1800 13 26 - 36 12 83 11.5 h10
110680.1900 14 26 - 36 12 83 11.5 e8
110680.2000 15 26 - 36 12 83 15 h10
110680.2100 16 32 - 42 16 92 15 e8
110680.2200 17 32 - 42 16 92 15 h10
110680.2300 18 32 - 42 16 92 15 e8
110680.2400 20 38 - 52 20 104 19 e8
110680.2500 22 38 - 52 20 104 19 e8
110680.2600 25 45 - 63 25 121 24 e8
110680.2700 28 45 - 63 25 121 24 e8
110680.2800 30 45 - 63 25 121 24 h10
110680.2900 32 53 - 70 32 133 31 e8

420 Brütsch/Rüegger Tools Ltd. • Heinrich Stutz-Strasse 20 • P.O. Box • CH-8902 Urdorf • www.brw.ch
