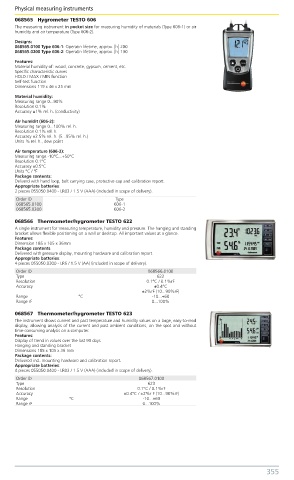

Page 361 - Benma | Blue book 5.0

Physical measuring instruments Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
068565 Hygrometer TESTO 606
The measuring instrument in pocket size for measuring humidity of materials (Type 606-1) or air
humidity and air temperature (Type 606-2).
Designs:
068565.0100 Type 606-1: Operatin lifetime, approx. [h] 200
068565.0200 Type 606-2: Operatin lifetime, approx. [h] 130
Features:
Material humidity of: wood, concrete, gypsum, cement, etc.
Specific characteristic curves
HOLD / MAX / MIN function
Self-test function
Dimensions 119 x 46 x 25 mm
Material humidity:
Measuring range 0...90%
Resolution 0.1%
Accuracy ±1% rel. h. (conductivity)
Air humidit (606-2):
Measuring range 0...100% rel. h.
Resolution 0.1% rel. h.
Accuracy ±2.5% rel. h. (5...95% rel. h.)
Units % rel. h., dew point
Air temperature (606-2):
Measuring range -10°C...+50°C
Resolution 0.1°C
Accuracy ±0.5°C
Units °C / °F
Package contents:
Deliverd with hand loop, belt carrying case, protective cap and calibration report.
Appropriate batteries:
2 pieces 055050.0400 - LR03 / 1.5 V (AAA) (included in scope of delivery).
Order ID Type
068565.0100 606-1
068565.0200 606-2
068566 Thermometer/hygrometer TESTO 622
A single instrument for measuring temperature, humidity and pressure. The hanging and standing
bracket allows flexible positioning on a wall or desktop. All important values at a glance.
Features:
Dimension 185 x 105 x 36mm
Package contents
Delivered with pressure display, mounting hardware and calibration report.
Appropriate batteries:
4 pieces 055050.0300 - LR6 / 1.5 V (AA) (included in scope of delivery).
Order ID 068566.0100
Type 622
Resolution 0.1°C / 0.1%rF
Accuracy ±0.4°C
±2%rF (10...90%rF)
Range °C -10...+60
Range rF 0...100%
068567 Thermometer/hygrometer TESTO 623
The instrument shows current and past temperature and humidity values on a large, easy-to-read
display, allowing analysis of the current and past ambient conditions, on the spot and without
time-consuming analysis on a computer.
Features:
Display of trend in values over the last 90 days
Hanging and standing bracket
Dimensions 185 x 105 x 36 mm
Package contents:
Delivered incl. mounting hardware and calibration report.
Appropriate batteries:
4 pieces 055050.0400 - LR03 / 1.5 V (AAA) (included in scope of delivery).
Order ID 068567.0100
Type 623
Resolution 0.1°C / 0.1%rF
Accuracy ±0.4°C / ±2%r F (10...90%rF)
Range °C -10...+60
Range rF 0...100%

Brütsch/Rüegger Tools Ltd. • Heinrich Stutz-Strasse 20 • P.O. Box • CH-8902 Urdorf • www.brw.ch 355
