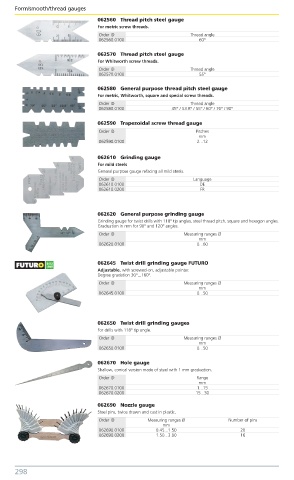

Form/smooth/thread gauges Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
062560 Thread pitch steel gauge
For metric screw threads.
Order ID Thread angle
062560.0100 60°
062570 Thread pitch steel gauge
For Whitworth screw threads.
Order ID Thread angle
062570.0100 55°

062580 General purpose thread pitch steel gauge
For metric, Whitworth, square and special screw threads.
Order ID Thread angle
062580.0100 45° / 53.8° / 55° / 60° / 70° / 90°

062590 Trapezoidal screw thread gauge
Order ID Pitches
mm
062590.0100 2...12

062610 Grinding gauge
For mild steels
General purpose gauge refacing all mild steels.
Order ID Language
062610.0100 DE
062610.0200 FR

062620 General purpose grinding gauge
Grinding gauge for twist drills with 118° tip angles, steel thread pitch, square and hexagon angles.
Graduation in mm for 90° and 120° angles.
Order ID Measuring ranges Ø
mm
062620.0100 0...60

062645 Twist drill grinding gauge FUTURO
Adjustable, with screwed-on, adjustable pointer.
Degree gradation 30°...160°.
Order ID Measuring ranges Ø
mm
062645.0100 0...50

062650 Twist drill grinding gauges
For drills with 118° tip angle.
Order ID Measuring ranges Ø
mm
062650.0100 0...50

062670 Hole gauge
Shallow, conical version made of steel with 1 mm graduation.
Order ID Range
mm
062670.0100 1...15
062670.0200 15...30

062690 Nozzle gauge
Steel pins, twice drawn and cast in plastic.
Order ID Measuring ranges Ø Number of pins
mm
062690.0100 0.45...1.50 20
062690.0200 1.50...3.00 16
