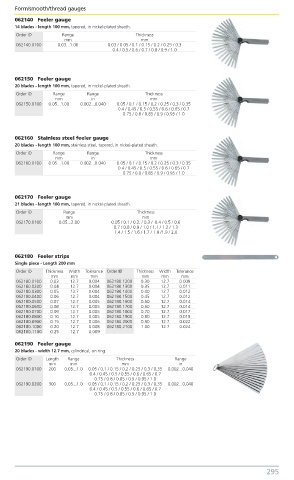

Page 301 - Benma | Blue book 5.0

Form/smooth/thread gauges Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
062140 Feeler gauge
14 blades - length 100 mm, tapered, in nickel-plated sheath.
Order ID Range Thickness
mm mm
062140.0100 0.03...1.00 0.03 / 0.05 / 0.1 / 0.15 / 0.2 / 0.25 / 0.3
0.4 / 0.5 / 0.6 / 0.7 / 0.8 / 0.9 / 1.0

062150 Feeler gauge
20 blades - length 100 mm, tapered, in nickel-plated sheath.
Order ID Range Range Thickness
mm in mm
062150.0100 0.05...1.00 0.002...0.040 0.05 / 0.1 / 0.15 / 0.2 / 0.25 / 0.3 / 0.35
0.4 / 0.45 / 0.5 / 0.55 / 0.6 / 0.65 / 0.7
0.75 / 0.8 / 0.85 / 0.9 / 0.95 / 1.0

062160 Stainless steel feeler gauge
20 blades - length 100 mm, stainless steel, tapered, in nickel-plated sheath.
Order ID Range Range Thickness
mm in mm
062160.0100 0.05...1.00 0.002...0.040 0.05 / 0.1 / 0.15 / 0.2 / 0.25 / 0.3 / 0.35
0.4 / 0.45 / 0.5 / 0.55 / 0.6 / 0.65 / 0.7
0.75 / 0.8 / 0.85 / 0.9 / 0.95 / 1.0

062170 Feeler gauge
21 blades - length 100 mm, tapered, in nickel-plated sheath.
Order ID Range Thickness
mm mm
062170.0100 0.05...2.00 0.05 / 0.1 / 0.2. / 0.3 / 0.4 / 0.5 / 0.6
0.7 / 0.8 / 0.9 / 1.0 / 1.1 / 1.2 / 1.3
1.4 / 1.5 / 1.6 / 1.7 / 1.8 /1.9 / 2.0

062180 Feeler strips
Single piece - Length 200 mm
Order ID Thickness Width Tolerance Order ID Thickness Width Tolerance
mm mm mm mm mm mm
062180.0100 0.03 12.7 0.004 062180.1200 0.30 12.7 0.009
062180.0200 0.04 12.7 0.004 062180.1300 0.35 12.7 0.011
062180.0300 0.05 12.7 0.004 062180.1400 0.40 12.7 0.012
062180.0400 0.06 12.7 0.004 062180.1500 0.45 12.7 0.012
062180.0500 0.07 12.7 0.005 062180.1600 0.50 12.7 0.014
062180.0600 0.08 12.7 0.005 062180.1700 0.60 12.7 0.014
062180.0700 0.09 12.7 0.005 062180.1800 0.70 12.7 0.017
062180.0800 0.10 12.7 0.005 062180.1900 0.80 12.7 0.019
062180.0900 0.15 12.7 0.006 062180.2000 0.90 12.7 0.022
062180.1000 0.20 12.7 0.008 062180.2100 1.00 12.7 0.024
062180.1100 0.25 12.7 0.009
062190 Feeler gauge
20 blades - width 12.7 mm, cylindrical, on ring.
Order ID Length Range Thickness Range
mm mm mm in
062190.0100 200 0.05...1.0 0.05 / 0.1 / 0.15 / 0.2 / 0.25 / 0.3 / 0.35 0.002...0.040
0.4 / 0.45 / 0.5 / 0.55 / 0.6 / 0.65 / 0.7
0.75 / 0.8 / 0.85 / 0.9 / 0.95 / 1.0
062190.0200 300 0.05...1.0 0.05 / 0.1 / 0.15 / 0.2 / 0.25 / 0.3 / 0.35 0.002...0.040
0.4 / 0.45 / 0.5 / 0.55 / 0.6 / 0.65 / 0.7
0.75 / 0.8 / 0.85 / 0.9 / 0.95 / 1.0

Brütsch/Rüegger Tools Ltd. • Heinrich Stutz-Strasse 20 • P.O. Box • CH-8902 Urdorf • www.brw.ch 295
