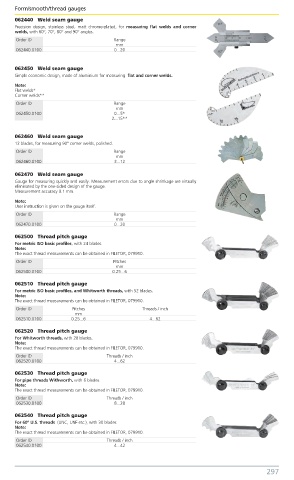

Form/smooth/thread gauges Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
062440 Weld seam gauge
Precision design, stainless steel, matt chrome-plated, for measuring flat welds and corner
welds, with 60°, 70°, 80° and 90° angles.
Order ID Range
mm
062440.0100 0...20

062450 Weld seam gauge
Simple economic design, made of aluminium for measuring flat and corner welds.
Note:
Flat welds*
Corner welds**
Order ID Range
mm
062450.0100 0...5*
2...15**

062460 Weld seam gauge
12 blades, for measuring 90° corner welds, polished.
Order ID Range
mm
062460.0100 3...12
062470 Weld seam gauge
Gauge for measuring quickly and easily. Measurement errors due to angle shrinkage are virtually
eliminated by the one-sided design of the gauge.
Measurement accuracy 0.1 mm.
Note:
User instruction is given on the gauge itself.
Order ID Range
mm
062470.0100 0...20
062500 Thread pitch gauge
For metric ISO basic profiles, with 24 blades.
Note:
The exact thread measurements can be obtained in FILETOR, 079910.
Order ID Pitches
mm
062500.0100 0.25...6
062510 Thread pitch gauge
For metric ISO basic profiles, and Whitworth threads, with 52 blades.
Note:
The exact thread measurements can be obtained in FILETOR, 079910.
Order ID Pitches Threads / inch
mm
062510.0100 0.25...6 4...62
062520 Thread pitch gauge
For Whitworth threads, with 28 blades.
Note:
The exact thread measurements can be obtained in FILETOR, 079910.
Order ID Threads / inch
062520.0100 4...62
062530 Thread pitch gauge
For pipe threads Withworth, with 6 blades.
Note:
The exact thread measurements can be obtained in FILETOR, 079910.
Order ID Threads / inch
062530.0100 8...28

062540 Thread pitch gauge
For 60° U.S. threads (UNC, UNF etc.), with 30 blades.
Note:
The exact thread measurements can be obtained in FILETOR, 079910.
Order ID Threads / inch
062540.0100 4...42

Brütsch/Rüegger Tools Ltd. • Heinrich Stutz-Strasse 20 • P.O. Box • CH-8902 Urdorf • www.brw.ch 297
