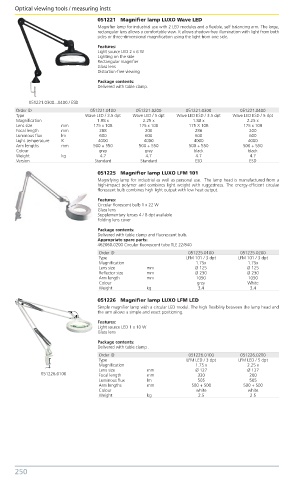

Page 256 - Benma | Blue book 5.0

Optical viewing tools / measuring instr. Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
051221 Magnifier lamp LUXO Wave LED
Magnifier lamp for industrial use with 2 LED modules and a flexible, self balancing arm. The large,
rectangular lens allows a comfortable view. It allows shadow-free illumination with light from both
sides or three-dimensional magnification using the light from one side.
Features:
Light source LED 2 x 6 W
Lighting on the side
Rectangular magnifier
Glass lens
Distortion-free viewing
Package contents:
Delivered with table clamp.

051221.0300...0400 / ESD
Order ID 051221.0100 051221.0200 051221.0300 051221.0400
Type Wave LED / 3.5 dpt Wave LED / 5 dpt Wave LED ESD / 3.5 dpt Wave LED ESD / 5 dpt
Magnification 1.88 x 2.25 x 1.88 x 2.25 x
Lens size mm 175 x 108 175 x 108 175 X 108 175 x 108
Focal length mm 288 200 286 200
Luminous flux lm 600 600 600 600
Light temperature K 4000 4000 4000 4000
Arm lengths mm 500 + 550 500 + 550 500 + 550 500 + 550
Colour grey grey black black
Weight kg 4.7 4.7 4.7 4.7
Version Standard Standard ESD ESD
051225 Magnifier lamp LUXO LFM 101
Magnifying lamp for industrial as well as personal use. The lamp head is manufactured from a
high-impact polymer and combines light weight with ruggedness. The energy-efficient circular
florescent bulb combines high light output with low heat output.
Features:
Circular florescent bulb 1 x 22 W
Glass lens
Supplementary lenses 4 / 8 dpt available
Folding lens cover
Package contents:
Delivered with table clamp and fluorescent bulb.
Appropriate spare parts:
462060.0200 Circular fluorescent tube TLE 22/840
Order ID 051225.0100 051225.0200
Type LFM 101 / 3 dpt LFM 101 / 3 dpt
Magnification 1.75x 1.75x
Lens size mm Ø 125 Ø 125
Reflector size mm Ø 230 Ø 230
Arm length mm 1050 1050
Colour grey White
Weight kg 3.4 3.4

051226 Magnifier lamp LUXO LFM LED
Simple magnifier lamp with a circular LED modul. The high flexibility between the lamp head and
the arm allows a simple and exact positioning.
Features:
Light source LED 1 x 10 W
Glass lens
Package contents:
Delivered with table clamp .
Order ID 051226.0100 051226.0200
Type LFM LED / 3 dpt LFM LED / 5 dpt
Magnification 1.75 x 2.25 x
Lens size mm Ø 127 Ø 127
051226.0100 Focal length mm 330 200
Luminous flux lm 505 505
Arm lengths mm 500 + 500 500 + 500
Colour white white
Weight kg 2.5 2.5
