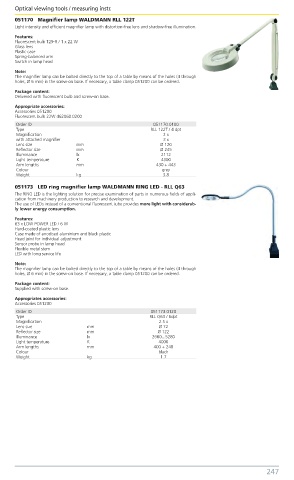

Page 253 - Benma | Blue book 5.0

Optical viewing tools / measuring instr. Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
051170 Magnifier lamp WALDMANN RLL 122T
Light intensity and efficient magnifier lamp with distortion-free lens and shadow-free illumination.
Features:
Fluorescent bulb T29-R / 1 x 22 W
Glass lens
Plastic case
Spring-balanced arm
Switch in lamp head
Note:
The magnifier lamp can be bolted directly to the top of a table by means of the holes (4 through
holes, Ø 6 mm) in the screw-on base. If necessary, a table clamp 051200 can be ordered.
Package content:
Delivered with fluorescent bulb and screw-on base.
Appropriate accessories:
Accessories 051200
Fluorescent bulb 22W 462060.0200
Order ID 051170.0100
Type RLL 122T / 4 dpt
Magnification 2 x
with attached magnifier 3 x
Lens size mm Ø 120
Reflector size mm Ø 245
Illuminance lx 2112
Light temperature K 4300
Arm lengths mm 430 + 443
Colour grey
Weight kg 3.8
051173 LED ring magnifier lamp WALDMANN RING LED - RLL Q63
The RING LED is the lighting solution for precise examination of parts in numerous fields of appli-
cation from machinery production to research and development.
The use of LEDs instead of a conventional fluorescent tube provides more light with considerab-
ly lower energy consumption.
Features:
63 x LOW POWER LED / 6 W
Hard-coated plastic lens
Case made of anodised aluminium and black plastic
Head joint for individual adjustment
Sensor probe in lamp head
Flexible metal stem
LED with long service life
Note:
The magnifier lamp can be bolted directly to the top of a table by means of the holes (4 through
holes, Ø 6 mm) in the screw-on base. If necessary, a table clamp 051200 can be ordered.
Package content:
Supplied with screw-on base.
Appropriates accessories:
Accessories 051200
Order ID 051173.0120
Type RLL Q63 / 6dpt
Magnification 2.5 x
Lens size mm Ø 72
Reflector size mm Ø 122
Illuminance lx 2660...5280
Light temperature K 4000
Arm lengths mm 400 + 248
Colour black
Weight kg 1.7
