Optical viewing tools / measuring instr. Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch

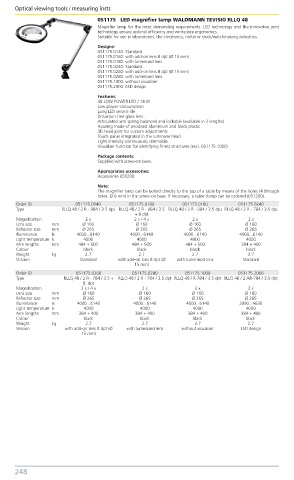

051175 LED magnifier lamp WALDMANN TEVISIO RLLQ 48
Magnifier lamp for the most demanding requirements. LED technology and the innovative joint
technology ensure optimal efficiency and workplace ergonomics.
Suitable for use in laboratories, the electronics, metal or clock/watchmaking industries.
Designs:
051175.0140: Standard
051175.0160: with add-on lens 8 dpt (Ø 15 mm)
051175.0180: with lumenised lens
051175.0240: Standard
051175.0260: with add-on lens 8 dpt (Ø 15 mm)
051175.0280: with lumenised lens
051175.1000: without visualiser
051175.2000: ESD design
Features:
48 LOW POWER LED / 14 W
Low power consumption
Long LED service life
Distortion-free glass lens
Articulated arm spring-balanced and lockable (available in 2 lengths)
Housing made of anodised aluminium and black plastic
3D head joint for custom adjustments
Touch panel integrated in the luminaire head
Light intensity continuously dimmable
Visualiser function for identifying finest structures (excl. 051175.1000)
Package contents:
Supplied with screw-on base.
Appropriates accessories:
Accessories 051200
Note:
The magnifier lamp can be bolted directly to the top of a table by means of the holes (4 through
holes, Ø 6 mm) in the screw-on base. If necessary, a table clamp can be ordered (051200).
Order ID 051175.0140 051175.0160 051175.0180 051175.0240
Type RLLQ 48 / 2 R - 984 / 3.5 dpt RLLQ 48 / 2 R - 984 / 3.5 RLLQ 48 / 2 R - 984 / 3.5 dpt RLLQ 48 / 2 R - 784 / 3.5 dpt
+ 8 dpt
Magnification 2 x 2 x / 4 x 2 x 2 x
Lens size mm Ø 160 Ø 160 Ø 160 Ø 160
Reflector size mm Ø 265 Ø 265 Ø 265 Ø 265
Illuminance lx 4000...6140 4000...6140 4000...6140 4000...6140
Light temperature K 4000 4000 4000 4000
Arm lengths mm 484 + 500 484 + 500 484 + 500 384 + 400
Colour black black black black
Weight kg 2.7 2.7 2.7 2.7
Version Standard with add-on lens 8 dpt (Ø with lumenised lens Standard
15 mm)
Order ID 051175.0260 051175.0280 051175.1000 051175.2000
Type RLLQ 48 / 2 R - 784 / 3.5 + RLLQ 48 / 2 R - 784 / 3.5 dpt RLLQ 48 / R-784 / 3.5 dpt RLLQ 48 / 2 AR-784 / 3.5 dpt
8 dpt
Magnification 2 x / 4 x 2 x 2 x 2 x
Lens size mm Ø 160 Ø 160 Ø 160 Ø 160
Reflector size mm Ø 265 Ø 265 Ø 265 Ø 265
Illuminance lx 4000...6140 4000...6140 4000...6140 3090...4630
Light temperature K 4000 4000 4000 4000
Arm lengths mm 384 + 400 384 + 400 384 + 400 384 + 400
Colour black black black black
Weight kg 2.7 2.7 2.7 2.7
Version with add-on lens 8 dpt (Ø with lumenised lens without visualiser ESD design
15 mm)
