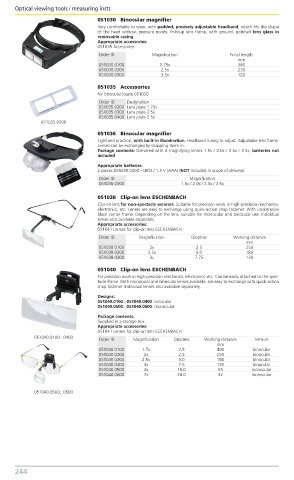

Page 250 - Benma | Blue book 5.0

Optical viewing tools / measuring instr. Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
051030 Binocular magnifier
Very comfortable to wear, with padded, precisely adjustable headband, which fits the shape
of the head without pressure points. Fold-up lens frame, with ground, polished lens glass in
removable casing.
Appropriate accessories:
051035 Accessories
Order ID Magnification Focal length
mm
051030.0100 1.75x 360
051030.0200 2.5x 230
051030.0300 3.5x 120
051035 Accessories
for binocular loupe 051030
Order ID Designation
051035.0200 Lens plate 1.75x
051035.0300 Lens plate 2.5x
051035.0400 Lens plate 3.5x
051035.0200
051036 Binocular magnifier
Light and practical, with built-in illumination. Headband is easy to adjust. Adjustable lens frame.
Lenses can be exchanged by snapping them in.
Package contents: Delivered with 4 magnifying lenses 1.5x / 2.0x / 2.5x / 3.5x, batteries not
included
Appropriate batteries:
2 pieces 055050.0400 - LR03 / 1.5 V (AAA) (NOT included in scope of delivery).
Order ID Magnification
051036.0500 1.5x / 2.0x / 2.5x / 3.5x

051038 Clip-on lens ESCHENBACH
Clip-on lens for non-spectacle wearers. Suitable for precision work in high-precision mechanics,
electronics, etc. Lenses are easy to exchange using quick-action snap fastener. With unobtrusive
black carrier frame. Depending on the lens, suitable for monocular and binocular use. Individual
lenses also available separately
Appropriate accessories:
051041 Lenses for clip-on lens ESCHENBACH
Order ID Magnification Dioptres Working distance
mm
051038.0100 2x 2.5 250
051038.0200 2.5x 5.0 180
051038.0300 3x 7.75 130

051040 Clip-on lens ESCHENBACH
For precision work in high-precision mechanics, electronics, etc. Can be easily attached to the spec-
tacle frame. Both monocular and binocular lenses available, are easy to exchange with quick-action
snap fastener. Individual lenses also available separately.
Designs:
051040.0100...051040.0400: binocular
051040.0500...051040.0600: monocular
Package contents:
Supplied in a storage box.
Appropriate accessories:
051041 Lenses for clip-on lens ESCHENBACH
051040.0100...0400 Order ID Magnification Dioptres Working distance Version
mm
051040.0100 1.7x 2.5 400 binocular
051040.0200 2x 2.5 250 binocular
051040.0300 2.5x 5.0 180 binocular
051040.0400 3x 7.5 130 binocular
051040.0500 4x 16.0 55 monocular
051040.0600 7x 28.0 32 monocular

051040.0500...0600

244 Brütsch/Rüegger Tools Ltd. • Heinrich Stutz-Strasse 20 • P.O. Box • CH-8902 Urdorf • www.brw.ch
