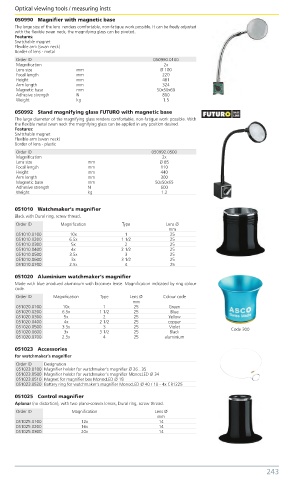

Page 249 - Benma | Blue book 5.0

Optical viewing tools / measuring instr. Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
050990 Magnifier with magnetic base
The large size of the lens renders comfortable, non-fatigue work possible. It can be freely adjusted
with the flexible swan neck; the magnifying glass can be pivoted.
Features:
Switchable magnet
Flexible arm (swan neck)
Border of lens - metal
Order ID 050990.0100
Magnification 2x
Lens size mm Ø 100
Focal length mm 220
Height mm 481
Arm length mm 324
Magnetic base mm 50x50x60
Adhesive strength N 800
Weight kg 1.5
050992 Stand magnifying glass FUTURO with magnetic base
The large diameter of the magnifying glass renders comfortable, non-fatigue work possible. With
the flexible metal swan neck the magnifying glass can be applied in any position desired.
Features:
Switchable magnet
Flexible arm (swan neck)
Border of lens - plastic
Order ID 050992.0500
Magnification 2x
Lens size mm Ø 85
Focal length mm 110
Height mm 440
Arm length mm 300
Magnetic base mm 50x50x65
Adhesive strength N 600
Weight kg 1.2

051010 Watchmaker‘s magnifier
Black with Dural ring, screw thread.
Order ID Magnification Type Lens Ø
mm
051010.0100 10x 1 25
051010.0200 6.5x 1 1/2 25
051010.0300 5x 2 25
051010.0400 4x 2 1/2 25
051010.0500 3.5x 3 25
051010.0600 3x 3 1/2 25
051010.0700 2.5x 4 25
051020 Aluminium watchmaker‘s magnifier
Made with blue anodized aluminium with biconvex lense. Magnification indicated by ring colour
code.
Order ID Magnification Type Lens Ø Colour code
mm
051020.0100 10x 1 25 Green
051020.0200 6.5x 1 1/2 25 Blue
051020.0300 5x 2 25 Yellow
051020.0400 4x 2 1/2 25 copper
051020.0500 3.5x 3 25 Violet Code 300
051020.0600 3x 3 1/2 25 Black
051020.0700 2.5x 4 25 aluminium

051023 Accessories
for watchmaker‘s magnifier
Order ID Designation
051023.0100 Magnifier holder for watchmaker‘s magnifier Ø 26...35
051023.0500 Magnifier holder for watchmaker‘s magnifier MonocLED Ø 34
051023.0510 Magnet for magnifier box MonocLED Ø 18
051023.0520 Battery ring for watchmaker‘s magnifier MonocLED Ø 40 / 10 - 4x CR1225
051025 Control magnifier
Aplanar (no distortion), with two plano-convex lenses, Dural ring, screw thread.
Order ID Magnification Lens Ø
mm
051025.0100 12x 14
051025.0200 16x 14
051025.0300 20x 14

Brütsch/Rüegger Tools Ltd. • Heinrich Stutz-Strasse 20 • P.O. Box • CH-8902 Urdorf • www.brw.ch 243
