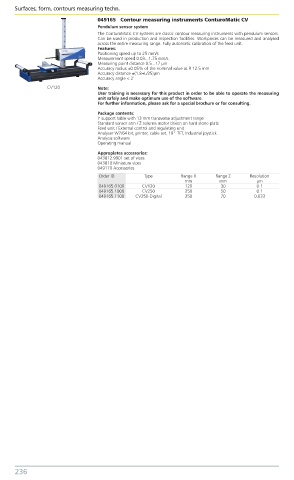

049165 Contour measuring instruments ConturoMatic CV
Pendulum sensor system
The ConturoMatic CV systems are classic contour measuring instruments with pendulum sensors.
Can be used in production and inspection facilities. Workpieces can be measured and analysed
across the entire measuring range. Fully automatic calibration of the feed unit.
Features:
Positioning speed up to 25 mm/s
Measurement speed 0.03...1.75 mm/s
Measuring point distance 0.5...17 µm
Accuracy radius ±0.05% of the nominal value at R 12.5 mm
Accuracy distance ±(1.8+L/25)µm
Accuracy angle < 2‘
CV120 Note:
User training is necessary for this product in order to be able to operate the measuring
unit safely and make optimum use of the software.
For further information, please ask for a special brochure or for consulting.
Package contents:
Y support table with 13 mm transverse adjustment range
Standard sensor arm / Z column motor driven on hard stone plate
Feed unit / External control and regulating unit
Analyser W7/64 bit, printer, cable set, 19“ TFT, Industrial joystick
Analysis software
Operating manual
Appropiates accessories:
043812.9901 set of vices
043810 Miniature vices
049170 Accessories
Order ID Type Range X Range Z Resolution
mm mm µm
049165.0100 CV120 120 30 0.1
049165.1000 CV250 250 50 0.1
049165.1100 CV250-Digital 250 70 0.033
