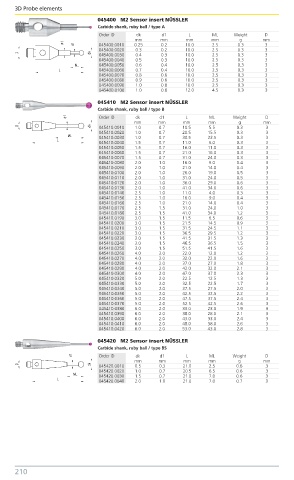

Page 216 - Benma | Blue book 5.0

3D Probe elements Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
045400 M2 Sensor insert NÜSSLER
Carbide shank, ruby ball / type A
Order ID dk d1 L ML Weight D
mm mm mm mm g mm
045400.0010 0.25 0.2 10.0 2.5 0.3 3
045400.0020 0.3 0.2 10.0 2.5 0.3 3
045400.0030 0.4 0.3 10.0 2.5 0.3 3
045400.0040 0.5 0.3 10.0 2.5 0.3 3
045400.0050 0.6 0.4 10.0 2.5 0.3 3
045400.0060 0.7 0.4 10.0 2.5 0.3 3
045400.0070 0.8 0.6 10.0 2.5 0.3 3
045400.0080 0.9 0.6 10.0 2.5 0.3 3
045400.0090 1.0 0.8 10.0 2.5 0.3 3
045400.0100 1.0 0.8 12.0 4.5 0.3 3
045410 M2 Sensor insert NÜSSLER
Carbide shank, ruby ball / type B
Order ID dk d1 L ML Weight D
mm mm mm mm g mm
045410.0010 1.0 0.7 10.5 5.5 0.3 3
045410.0020 1.0 0.7 20.5 15.5 0.3 3
045410.0030 1.0 0.7 30.5 23.5 0.3 3
045410.0040 1.5 0.7 11.0 6.0 0.3 3
045410.0050 1.5 0.7 16.0 11.0 0.3 3
045410.0060 1.5 0.7 21.0 16.0 0.3 3
045410.0070 1.5 0.7 31.0 24.0 0.3 3
045410.0080 2.0 1.0 16.0 9.0 0.4 3
045410.0090 2.0 1.0 21.0 14.0 0.4 3
045410.0100 2.0 1.0 26.0 19.0 0.5 3
045410.0110 2.0 1.0 31.0 24.0 0.5 3
045410.0120 2.0 1.0 36.0 29.0 0.6 3
045410.0130 2.0 1.0 41.0 34.0 0.6 3
045410.0140 2.5 1.0 11.0 4.0 0.3 3
045410.0150 2.5 1.0 16.0 9.0 0.4 3
045410.0160 2.5 1.0 21.0 14.0 0.4 3
045410.0170 2.5 1.5 31.0 24.0 1.0 3
045410.0180 2.5 1.5 41.0 34.0 1.2 3
045410.0190 3.0 1.5 11.5 6.5 0.6 3
045410.0200 3.0 1.5 21.5 14.5 0.9 3
045410.0210 3.0 1.5 31.5 24.5 1.1 3
045410.0220 3.0 1.5 36.5 29.5 1.2 3
045410.0230 3.0 1.5 41.5 31.5 1.3 3
045410.0240 3.0 1.5 46.5 36.5 1.5 3
045410.0250 3.0 1.5 51.5 41.5 1.6 3
045410.0260 4.0 2.0 22.0 12.0 1.2 3
045410.0270 4.0 2.0 32.0 22.0 1.6 3
045410.0280 4.0 2.0 37.0 27.0 1.8 3
045410.0290 4.0 2.0 42.0 32.0 2.1 3
045410.0300 4.0 2.0 47.0 37.0 2.3 3
045410.0320 5.0 2.0 22.5 12.5 1.3 3
045410.0330 5.0 2.0 32.5 22.5 1.7 3
045410.0340 5.0 2.0 37.5 27.5 2.0 3
045410.0350 5.0 2.0 42.5 32.5 2.2 3
045410.0360 5.0 2.0 47.5 37.5 2.4 3
045410.0370 5.0 2.0 52.5 42.5 2.6 3
045410.0380 6.0 2.0 33.0 23.0 1.9 3
045410.0390 6.0 2.0 38.0 28.0 2.1 3
045410.0400 6.0 2.0 43.0 33.0 2.4 3
045410.0410 6.0 2.0 48.0 38.0 2.6 3
045410.0420 6.0 2.0 53.0 43.0 2.8 3
045420 M2 Sensor insert NÜSSLER
Carbide shank, ruby ball / type BS
Order ID dk d1 L ML Weight D
mm mm mm mm g mm
045420.0010 0.5 0.3 21.0 2.5 0.6 3
045420.0020 1.0 0.7 20.5 6.5 0.6 3
045420.0030 1.5 0.7 21.0 7.0 0.6 3
045420.0040 2.0 1.0 21.0 7.0 0.7 3
