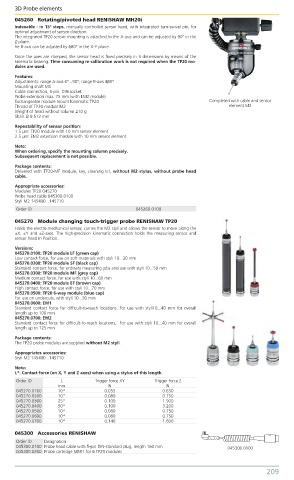

045260 Rotating/pivoted head RENISHAW MH20i
Indexable - in 15° steps, manually controlled sensor head, with integrated turn-swivel pin, for
optimal adjustment of sensor direction.
The integrated TP20 sensor mounting is attached to the A-axis and can be adjusted by 90° in the
Z-plane.
he B-axis can be adjusted by q180° in the X-Y plane.
Once the axes are clamped, the sensor head is fixed precisely in 3 dimensions by means of the
kinematic bearing. Time-consuming re-calibration work is not required when the TP20 mo-
dules are used.
Features:
Adjustments: range A-axis 0°...90°; range B-axis q180°
Mounting shaft MS
Cable connection, 5-pin. DIN socket
Probe extension max. 75 mm (with EM2 module)
Exchangeable module mount Kinematic TP20 Completed with cable and sensor
Thread of TP20 module M2 element M2
Weight of head without column 210 g
Shaft Ø 9.512 mm
Repeatability of sensor position:
1.5 µm: TP20 module with 10 mm sensor element
2.5 µm: EM2 extension module with 10 mm sensor element
Note:
When ordering, specify the mounting column precisely.
Subsequent replacement is not possible.
Package contents:
Delivered with TP20-MF module, key, cleaning kit, without M2 stylus, without probe head
cable.
Appropriate accessories:
Modules TP20 045270
Probe head cable 045300.0100
Styli M2 145400...145710
Order ID 045260.0100
045270 Module changing touch-trigger probe RENISHAW TP20
Holds the electro-mechanical sensor, carries the M2 styli and allows the sensor to move along the
±X, ±Y and ±Z-axes. The high-precision kinematic connection holds the measuring sensor and
sensor head in Position.
Versions:
045270.0100: TP20 module LF (green cap)
Low contact force, for use on soft materials with styli 10...30 mm
045270.0200: TP20 module SF (black cap)
Standard contact force, for ordinary measuring jobs and use with styli 10...50 mm
045270.0300: TP20 module MF (grey cap)
Medium contact force, for use with styli 10...60 mm
045270.0400: TP20 module EF (brown cap)
High contact force, for use with styli 10...70 mm
045270.0500: TP20 6-way module (blue cap)
For use on undercuts, with styli 10...30 mm
045270.0600: EM1
Standard contact force for difficult-to-reach locations. For use with styli10...40 mm for overall
length up to 100 mm
045270.0700: EM2
Standard contact force for difficult-to-reach locations. For use with styli 10...40 mm for overall
length up to 125 mm
Package contents:
The TP20 probe modules are supplied without M2 styli.
Appropriates accessories:
Styli M2 145400...145710
Note:
L*: Contact force (on X, Y and Z axes) when using a stylus of this length.
Order ID L Trigger force XY Trigger force Z
mm N N
045270.0100 10* 0.055 0.650
045270.0200 10* 0.080 0.750
045270.0300 25* 0.100 1.900
045270.0400 50* 0.100 3.200
045270.0500 10* 0.080 0.750
045270.0600 10* 0.080 0.750
045270.0700 10* 0.140 1.600
045300 Accessories RENISHAW
Order ID Designation
045300.0100 Probe head cable with 5-pin DIN-standard plug, length 160 mm 045300.0100
045300.0200 Probe cartridge MSR1 for 6 TP20 modules
