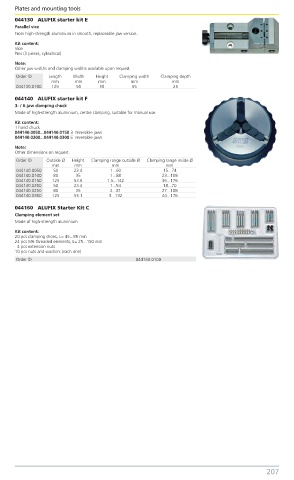

Plates and mounting tools Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
044130 ALUFIX starter kit E
Parallel vice
From high-strength aluminium in smooth, replaceable jaw version.
Kit content:
Vice
Pins (3 pieces, cylindrical)
Note:
Other jaw widths and clamping widths available upon request.
Order ID Length Width Height Clamping width Clamping depth
mm mm mm mm mm
044130.0100 125 50 50 65 25
044140 ALUFIX starter kit F
3- / 6-jaw clamping chuck
Made of high-strength aluminium, centre clamping, suitable for manual use.
Kit content:
1 hand chuck
044140.0050...044140.0150 3 reversible jaws
044140.0200...044140.0300 6 reversible jaws
Note:
Other dimensions on request.
Order ID Outside Ø Height Clamping range outside Ø Clamping range inside Ø
mm mm mm mm
044140.0050 50 23.4 1...60 15...74
044140.0100 80 35 1...88 23...108
044140.0150 125 53.6 1.5...142 36...176
044140.0200 50 23.4 1...54 18...70
044140.0250 80 35 2...81 27...108
044140.0300 125 53.1 3...132 44...176
044160 ALUFIX Starter Kit C
Clamping element set
Made of high-strength aluminium.
Kit content:
20 pcs clamping shoes, L= 45...85 mm
24 pcs M6 threaded elements, L= 25...150 mm
4 pcs extension nuts
10 pcs nuts and washers (each one)
Order ID 044160.0100

Brütsch/Rüegger Tools Ltd. • Heinrich Stutz-Strasse 20 • P.O. Box • CH-8902 Urdorf • www.brw.ch 207
