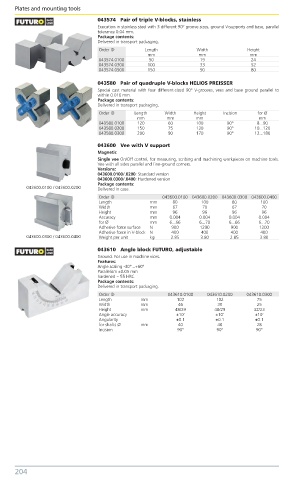

Plates and mounting tools            Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
                                043574   Pair of triple V-blocks, stainless
                                Execution in stainless steel with 3 different 90° groove sizes, ground V-supports and base, parallel
                                tolerance 0.04 mm.
                                Package contents:
                                Delivered in transport packaging.
                                 Order ID       Length          Width            Height
                                                 mm              mm              mm
                                 043574.0100     50              19               24
                                 043574.0300     100             33               52
                                 043574.0500     150             50               80
                                043580   Pair of quadruple V-blocks HELIOS PREISSER
                                Special cast material with four different-sized 90° V-grooves, vees and base ground parallel to
                                within 0.016 mm.
                                Package contents:
                                Delivered in transport packaging.
                                 Order ID   Length    Width    Height    Incision   for Ø
                                             mm        mm       mm                  mm
                                 043580.0100  120      60       100       90°       8...90
                                 043580.0200  150      75       130       90°      10...120
                                 043580.0300  200      90       170       90°      12...180
                                043600   Vee with V support
                                Magnetic
                                Single vee On/Off control, for measuring, scribing and machining workpieces on machine tools.
                                Vee with all sides parallel and fine-ground corners.
                                Versions:
                                043600.0100/.0200: Standard version
                                043600.0300/.0400: Hardened version
                                Package contents:
          043600.0100 / 043600.0200  Delivered in case.
                                 Order ID            043600.0100 043600.0200 043600.0300 043600.0400
                                 Length          mm      80       100       80       100
                                 Width           mm      67       70        67       70
                                 Height          mm      96       96        96       96
                                 Accuracy        mm     0.004    0.004     0.004    0.004
                                 for Ø           mm     6...66   6...70    6...66   6...70
                                 Adhesive force surface  N  900  1200      900       1200
                                 Adhesive force in V-block N  400  400     400       400
          043600.0300 / 043600.0400  Weight per unit  kg  2.85    3.80     2.85      3.80

                                043610   Angle block FUTURO, adjustable
                                Ground. For use in machine vices.
                                Features:
                                Angle scaling -30°...+60°
                                Parallelism ±0.05 mm
                                hardened ~ 55 HRC
                                Package contents:
                                Delivered in transport packaging.
                                 Order ID              043610.0100  043610.0200  043610.0300
                                 Length       mm          102          102          75
                                 Width        mm          46           30           25
                                 Height       mm         48/29        48/29        32/23
                                 Angle accuracy           ±10‘        ±10‘         ±10‘
                                 Angularity               ±0.1        ±0.1         ±0.1
                                 for shafts Ø  mm         40           40           28
                                 Incision                 90°          90°         90°
