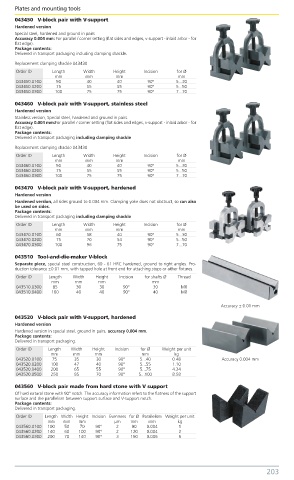

P. 208

Plates and mounting tools            Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
      043450   V-block pair with V-support
      Hardened version
      Special steel, hardened and ground in pairs
      Accuracy 0.004 mm: For parallel / corner setting (flat sides and edges, v-support - inlaid arbor - for
      flat edge).
      Package contents:
      Delivered in transport packaging including clamping shackle.
      Replacement clamping shackle 043430
      Order ID    Length    Width     Height   Incision   for Ø
                   mm        mm       mm                  mm
      043450.0100  50        40        40        90°      5...30
      043450.0200  75        55        55        90°      5...50
      043450.0300  100       75        75        90°      7...70
      043460   V-block pair with V-support, stainless steel
      Hardened version
      Stainless version, Special steel, hardened and ground in pairs.
      Accuracy 0.004 mm:For parallel / corner setting (flat sides and edges, v-support - inlaid arbor - for
      flat edge).
      Package contents:
      Delivered in transport packaging including clamping shackle
      Replacement clamping shackle 043430
      Order ID    Length    Width     Height   Incision   for Ø
                   mm        mm       mm                  mm
      043460.0100  50        40        40        90°      5...30
      043460.0200  75        55        55        90°      5...50
      043460.0300  100       75        75        90°      7...70
      043470   V-block pair with V-support, hardened
      Hardened version
      Hardened version, all sides ground to 0.004 mm. Clamping yoke does not obstruct, so can also
      be used on sides.
      Package contents:
      Delivered in transport packaging including clamping shackle
      Order ID    Length    Width     Height   Incision   for Ø
                   mm        mm       mm                  mm
      043470.0100  60        58        40        90°      5...30
      043470.0200  75        70        54        90°      5...50
      043470.0300  100       96        75        90°      7...70
      043510   Tool-and-die-maker V-block
      Separate piece, special steel construction, 60 - 61 HRC hardened, ground to right angles. Pro-
      duction tolerance ±0.01 mm, with tapped hole at front end for attaching stops or other fixtures.
      Order ID   Length  Width  Height  Incision  for shafts Ø  Thread
                  mm     mm      mm               mm
      043510.0300  85     30     30      90°      30       M6
      043510.0400  100    40     40      90°      40       M8

                                                                        Accuracy ± 0.01 mm
      043520   V-block pair with V-support, hardened
      Hardened version
      Hardened version in special steel, ground in pairs, accuracy 0.004 mm.
      Package contents:
      Delivered in transport packaging.
      Order ID   Length  Width  Height  Incision  for Ø  Weight per unit
                 mm      mm     mm             mm        kg
      043520.0100  75    35     30     90°    5...40     0.48           Accuracy 0.004 mm
      043520.0200  100   47     40     90°    5...55     1.10
      043520.0400  200   65     55     90°    5...75     4.24
      043520.0500  250   85     70     90°    5...100    8.58
      043560   V-block pair made from hard stone with V support
      Of hard natural stone with 90° notch. The accuracy information refers to the flatness of the support
      surface and the parallelism between support surface and V-support notch.
      Package contents:
      Delivered in transport packaging.
      Order ID  Length Width Height Incision Evenness for Ø Parallelism Weight per unit
                mm   mm   mm          µm   mm    mm       kg
      043560.0100  100  50  70  90°   2    90   0.004      1
      043560.0200  140  60  100  90°  2    120  0.004      2
      043560.0300  200  70  140  90°  3    150  0.006      6





      Brütsch/Rüegger Tools Ltd. • Heinrich Stutz-Strasse 20 • P.O. Box • CH-8902 Urdorf • www.brw.ch  203
