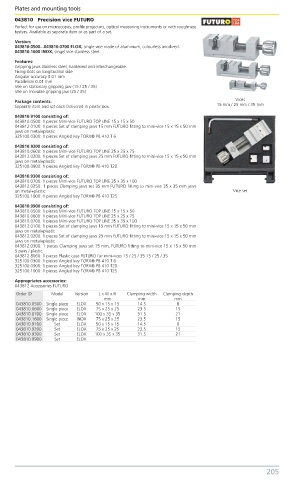

P. 210

Plates and mounting tools            Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
      043810   Precision vice FUTURO
      Perfect for use on microscopes, profile projectors, optical measuring instruments or with roughness
      testers. Available as separate item or as part of a set.
      Version:
      043810.0500...043810.0700 ELOX, single vice made of aluminium, colourless anodized.
      043810.1600 INOX, singel vice stainless steel.
      Features:
      Gripping jaws stainless steel, hardened and interchangeable
      Fixing slots on longitudinal side
      Angular accuracy 0.01 mm
      Parallelism 0.01 mm
      Vee on stationary gripping jaw (15 / 25 / 35)
      Vee on movable gripping jaw (25 / 35)
      Package contents:                                                      Vices
      Separate item and set each Delivered in plastic box.             15 mm / 25 mm / 35 mm
      043810.9100 consisting of:
      043810.0500: 1 pieces Mini-vice FUTURO TOP LINE 15 x 15 x 50
      043812.0100: 1 pieces Set of clamping jaws 15 mm FUTURO fitting to mini-vice 15 x 15 x 50 mm
      jaws on metal+plastic
      325100.0300: 1 pieces Angled key TORX® PB 410 T 6
      043810.9200 consisting of:
      043810.0600: 1 pieces Mini-vice FUTURO TOP LINE 25 x 25 x 75
      043812.0200: 1 pieces Set of clamping jaws 25 mm FUTURO fitting to mini-vice 15 x 15 x 50 mm
      jaws on metal+plastic
      325100.0900: 1 pieces Angled key TORX® PB 410 T20
      043810.9300 consisting of:
      043810.0700: 1 pieces Mini-vice FUTURO TOP LINE 35 x 35 x 100
      043812.0250: 1 pieces Clamping jaws set 35 mm FUTURO fitting to mini-vice 35 x 35 mm jaws
      on metal+plastic                                                      Vice set
      325100.1000: 1 pieces Angled key TORX® PB 410 T25
      043810.9900 consisting of:
      043810.0500: 1 pieces Mini-vice FUTURO TOP LINE 15 x 15 x 50
      043810.0600: 1 pieces Mini-vice FUTURO TOP LINE 25 x 25 x 75
      043810.0700: 1 pieces Mini-vice FUTURO TOP LINE 35 x 35 x 100
      043812.0100: 1 pieces Set of clamping jaws 15 mm FUTURO fitting to mini-vice 15 x 15 x 50 mm
      jaws on metal+plastic
      043812.0200: 1 pieces Set of clamping jaws 25 mm FUTURO fitting to mini-vice 15 x 15 x 50 mm
      jaws on metal+plastic
      043812.0300: 1 pieces Clamping jaws set 15 mm, FUTURO fitting to mini-vice 15 x 15 x 50 mm
      5 pairs / plastic
      043812.8060: 1 pieces Plastic case FUTURO for mini-vices 15 / 25 / 35 15 / 25 / 35
      325100.0300: 1 pieces Angled key TORX® PB 410 T 6
      325100.0900: 1 pieces Angled key TORX® PB 410 T20
      325100.1000: 1 pieces Angled key TORX® PB 410 T25
      Appropriates accessories:
      043812 Accessories FUTURO
      Order ID    Model  Version  L x W x H  Clamping width  Clamping depth
                                  mm         mm          mm
      043810.0500  Single piece  ELOX  50 x 15 x 15  14.5  8
      043810.0600  Single piece  ELOX  75 x 25 x 25  23.5  15
      043810.0700  Single piece  ELOX  100 x 35 x 35  31.5  21
      043810.1600  Single piece  INOX  75 x 25 x 25  23.5  15
      043810.9100  Set    ELOX  50 x 15 x 15  14.5        8
      043810.9200  Set    ELOX  75 x 25 x 25  23.5        15
      043810.9300  Set    ELOX  100 x 35 x 35  31.5       21
      043810.9900  Set    ELOX
