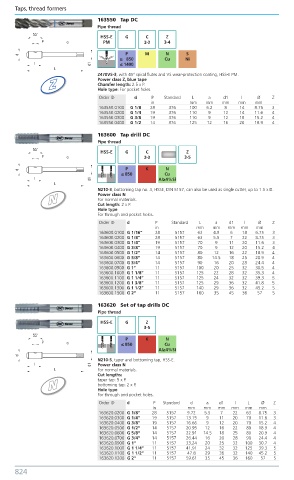

Page 833 - Benma | Blue book 5.0

Taps, thread formers Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
1 63550 Tap DC
Pipe thread
HSS-E G C Z
PM 2-3 3-4
P M N S
≥ 850 Cu Ni
≤ 1400
Z470VS-3, with 45° spiral flutes and VS wear-protection coating, HSS-E PM.
Z Power class Z, blue tape
Chamfer length: 2.5 x P.
Hole type: For pocket holes.
Order ID d P Standard L a d1 l Ø Z
in mm mm mm mm mm
163550.0100 G 1/8 28 376 100 6.2 8 14 8.75 3
163550.0200 G 1/4 19 376 110 9 12 14 11.6 4
163550.0300 G 3/8 19 376 110 9 12 18 15.2 4
163550.0400 G 1/2 14 376 125 12 16 20 18.9 4
1 63600 Tap drill DC
Pipe thread
HSS-E G C Z
2-3 3-5
P K N
≤ 850 Cu
AI≥4%Si
N210-3, bottoming tap no. 3, HSSE, DIN 5157, can also be used as single cutter, up to 1.5 x D.
N Power class N
For normal materials.
Cut length: 2 x P.
Hole type
For through and pocket holes.
Order ID d P Standard L a d1 l Ø Z
in mm mm mm mm mm
163600.0100 G 1/16“ 28 5157 63 4.9 6 18 6.75 3
163600.0200 G 1/8“ 28 5157 63 5.5 7 22 8.75 3
163600.0300 G 1/4“ 19 5157 70 9 11 20 11.6 3
163600.0400 G 3/8“ 19 5157 70 9 12 20 15.2 4
163600.0500 G 1/2“ 14 5157 80 12 16 22 18.9 4
163600.0600 G 5/8“ 14 5157 80 14.5 18 25 20.9 4
163600.0700 G 3/4“ 14 5157 90 16 20 28 24.4 4
163600.0900 G 1“ 11 5157 100 20 25 32 30.5 4
163600.1000 G 1 1/8“ 11 5157 125 22 28 32 35.3 4
163600.1100 G 1 1/4“ 11 5157 125 24 32 32 39.3 5
163600.1200 G 1 3/8“ 11 5157 125 29 36 32 41.8 5
163600.1300 G 1 1/2“ 11 5157 140 29 36 32 45.2 5
163600.1500 G 2“ 11 5157 160 35 45 36 57 5

1 63620 Set of tap drills DC
Pipe thread
HSS-E G Z
3-5

P K N
≤ 850 Cu
AI≥4%Si
N210-S, taper and bottoming tap, HSS-E.
Power class N
For normal materials.
Cut lengths:
N taper tap: 5 x P.
bottoming tap: 2 x P.
Hole type
For through and pocket holes.
Order ID d P Standard d a d1 l L Ø Z
in mm mm mm mm mm mm
163620.0200 G 1/8“ 28 5157 9.72 5.5 7 22 63 8.75 3
163620.0300 G 1/4“ 19 5157 13.15 9 11 20 70 11.6 3
163620.0400 G 3/8“ 19 5157 16.66 9 12 20 70 15.2 4
163620.0500 G 1/2“ 14 5157 20.95 12 16 22 80 18.9 4
163620.0600 G 5/8“ 14 5157 22.91 14.5 18 25 80 20.9 4
163620.0700 G 3/4“ 14 5157 26.44 16 20 28 90 24.4 4
163620.0900 G 1“ 11 5157 33.24 20 25 32 100 30.7 4
163620.1000 G 1 1/4“ 11 5157 41.91 24 32 32 125 39.3 5
163620.1100 G 1 1/2“ 11 5157 47.8 29 36 32 140 45.2 5
163620.1200 G 2“ 11 5157 59.61 35 45 36 160 57 5
