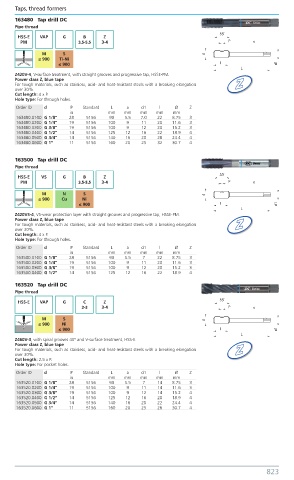

Taps, thread formers Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
1 63480 Tap drill DC
Pipe thread
HSS-E VAP G B Z
PM 3.5-5.5 3-4
M S
≤ 900 Ti-Ni
≤ 900
Z420V-4, V-surface treatment, with straight grooves and progressive tap, HSSE-PM.
Power class Z, blue tape
For tough materials, such as stainless, acid- and heat-resistant steels with a breaking elongation Z
over 30%.
Cut length: 4 x P.
Hole type: For through holes.
Order ID d P Standard L a d1 l Ø Z
in mm mm mm mm mm
163480.0100 G 1/8“ 28 5156 90 5.5 7.0 22 8.75 3
163480.0200 G 1/4“ 19 5156 100 9 11 20 11.6 3
163480.0300 G 3/8“ 19 5156 100 9 12 20 15.2 3
163480.0400 G 1/2“ 14 5156 125 12 16 22 18.9 4
163480.0500 G 3/4“ 14 5156 140 16 20 28 24.4 4
163480.0600 G 1“ 11 5156 160 20 25 32 30.7 4

1 63500 Tap drill DC
Pipe thread
HSS-E VS G B Z
PM 3.5-5.5 3-4
M N S
≤ 900 Cu Ni
≤ 900
Z420VS-4, VS-wear protection layer with straight grooves and progressive tap, HSSE-PM.
Power class Z, blue tape
For tough materials, such as stainless, acid- and heat-resistant steels with a breaking elongation Z
over 30%.
Cut length: 4 x P.
Hole type: For through holes.
Order ID d P Standard L a d1 l Ø Z
in mm mm mm mm mm
163500.0100 G 1/8“ 28 5156 90 5.5 7 22 8.75 3
163500.0200 G 1/4“ 19 5156 100 9 11 20 11.6 3
163500.0300 G 3/8“ 19 5156 100 9 12 20 15.2 3
163500.0400 G 1/2“ 14 5156 125 12 16 22 18.9 4
1 63520 Tap drill DC
Pipe thread
HSS-E VAP G C Z
2-3 3-4

M S
≤ 900 Ni
≤ 900
Z460V-3, with spiral grooves 40° and V-surface treatment, HSS-E.
Power class Z, blue tape
For tough materials, such as stainless, acid- and heat-resistant steels with a breaking elongation Z
over 30%.
Cut length: 2.5 x P.
Hole type: For pocket holes.
Order ID d P Standard L a d1 l Ø Z
in mm mm mm mm mm
163520.0100 G 1/8“ 28 5156 90 5.5 7 14 8.75 3
163520.0200 G 1/4“ 19 5156 100 9 11 14 11.6 3
163520.0300 G 3/8“ 19 5156 100 9 12 14 15.2 4
163520.0400 G 1/2“ 14 5156 125 12 16 20 18.9 4
163520.0500 G 3/4“ 14 5156 140 16 20 22 24.4 4
163520.0600 G 1“ 11 5156 160 20 25 26 30.7 4

Brütsch/Rüegger Tools Ltd. • Heinrich Stutz-Strasse 20 • P.O. Box • CH-8902 Urdorf • www.brw.ch 823
