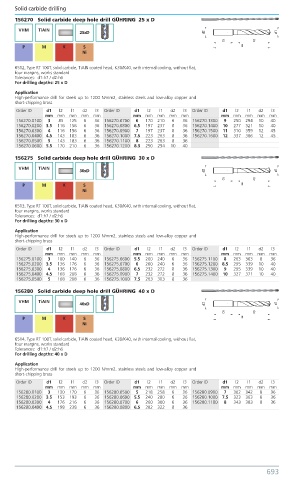

Solid carbide drilling Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
156270 Solid carbide deep hole drill GÜHRING 25 x D

VHM TiAIN 25xD

P M K S
Ni

6512, Type RT 100T, solid carbide, TiAlN coated head, K30/K40, with internal cooling, without flat,
four margins, works standard
Tolerances: d1:h7 / d2:h6
For drilling depths: 25 x D
Application
High-performance drill for steels up to 1200 N/mm2, stainless steels and low-alloy copper and
short-chipping brass
Order ID d1 l2 l1 d2 l3 Order ID d1 l2 l1 d2 l3 Order ID d1 l2 l1 d2 l3
mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm
156270.0100 3 85 125 6 36 156270.0700 6 170 210 6 36 156270.1300 9 250 294 10 40
156270.0200 3.5 116 156 6 36 156270.0800 6.5 197 237 8 36 156270.1400 10 277 321 10 40
156270.0300 4 116 156 6 36 156270.0900 7 197 237 8 36 156270.1500 11 310 359 12 45
156270.0400 4.5 143 183 6 36 156270.1000 7.5 223 263 8 36 156270.1600 12 337 386 12 45
156270.0500 5 143 183 6 36 156270.1100 8 223 263 8 36
156270.0600 5.5 170 210 6 36 156270.1200 8.5 250 294 10 40
156275 Solid carbide deep hole drill GÜHRING 30 x D
VHM TiAIN 30xD

P M K S
Ni

6513, Type RT 100T, solid carbide, TiAlN coated head, K30/K40, with internal cooling, without flat,
four margins, works standard
Tolerances: d1:h7 / d2:h6
For drilling depths: 30 x D
Application
High-performance drill for steels up to 1200 N/mm2, stainless steels and low-alloy copper and
short-chipping brass
Order ID d1 l2 l1 d2 l3 Order ID d1 l2 l1 d2 l3 Order ID d1 l2 l1 d2 l3
mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm
156275.0100 3 100 140 6 36 156275.0600 5.5 200 240 6 36 156275.1100 8 263 303 8 36
156275.0200 3.5 136 176 6 36 156275.0700 6 200 240 6 36 156275.1200 8.5 295 339 10 40
156275.0300 4 136 176 6 36 156275.0800 6.5 232 272 8 36 156275.1300 9 295 339 10 40
156275.0400 4.5 168 208 6 36 156275.0900 7 232 272 8 36 156275.1400 10 327 371 10 40
156275.0500 5 168 208 6 36 156275.1000 7.5 263 303 8 36
156280 Solid carbide deep hole drill GÜHRING 40 x D
VHM TiAIN 40xD

P M K S
Ni

6514, Type RT 100T, solid carbide, TiAlN coated head, K30/K40, with internal cooling, without flat,
four margins, works standard
Tolerances: d1:h7 / d2:h6
For drilling depths: 40 x D
Application
High-performance drill for steels up to 1200 N/mm2, stainless steels and low-alloy copper and
short-chipping brass
Order ID d1 l2 l1 d2 l3 Order ID d1 l2 l1 d2 l3 Order ID d1 l2 l1 d2 l3
mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm
156280.0100 3 130 170 6 36 156280.0500 5 218 258 6 36 156280.0900 7 302 342 8 36
156280.0200 3.5 153 193 6 36 156280.0600 5.5 240 280 6 36 156280.1000 7.5 323 363 8 36
156280.0300 4 176 216 6 36 156280.0700 6 260 300 6 36 156280.1100 8 343 383 8 36
156280.0400 4.5 198 238 6 36 156280.0800 6.5 282 322 8 36
