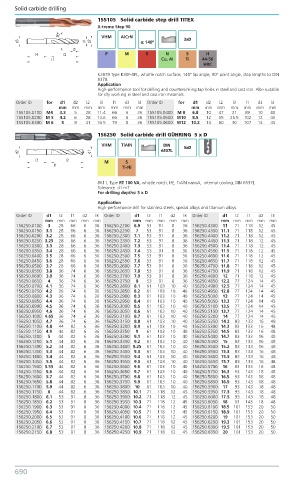

Solid carbide drilling Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
155105 Solid carbide step drill TITEX
X-treme Step 90
VHM AlCrN 3xD
α: 140º
P M K N S H
Cu, AI Ti 44-56
HRC
K3879 Type K30F-XPL, whistle notch surface, 140° tip angle, 90° point angle, step lengths to DIN
8378.
Application
High-performance tool for drilling and countersinking tap holes in steel and cast iron. Also suitable
for dry working in steel and cast iron materials.
Order ID for d1 d2 l2 l3 l1 d3 l4 Order ID for d1 d2 l2 l3 l1 d3 l4
mm mm mm mm mm mm mm mm mm mm mm mm mm mm
155105.0100 M4 3.3 5 28 11.4 66 6 36 155105.0400 M 8 6.8 10 47 21 89 10 40
155105.0200 M 5 4.2 6 28 13.6 66 6 36 155105.0500 M10 8.5 12 55 25.5 102 12 45
155105.0300 M 6 5 8 41 16.5 79 8 36 155105.0600 M12 10.2 14 60 30 107 14 45
156250 Solid carbide drill GÜHRING 5 x D

VHM TiAIN DIN 5xD
6537L
M S
Ti-Ni

8611, Type RT 100 VA, whistle notch, HE, TiAlN nanoA, internal cooling, DIN 6537L
Tolerance d1:m7
For drilling depths: 5 x D
Application
High-performance drill for stainless steels, special alloys and titanium alloys.
Order ID d1 l2 l1 d2 l3 Order ID d1 l2 l1 d2 l3 Order ID d1 l2 l1 d2 l3
mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm
156250.0100 3 28 66 6 36 156250.2200 6.9 53 91 8 36 156250.4300 11 71 118 12 45
156250.0150 3.1 28 66 6 36 156250.2250 7 53 91 8 36 156250.4350 11.1 71 118 12 45
156250.0200 3.2 28 66 6 36 156250.2300 7.1 53 91 8 36 156250.4400 11.2 71 118 12 45
156250.0250 3.25 28 66 6 36 156250.2350 7.2 53 91 8 36 156250.4450 11.3 71 118 12 45
156250.0300 3.3 28 66 6 36 156250.2400 7.3 53 91 8 36 156250.4500 11.4 71 118 12 45
156250.0350 3.4 28 66 6 36 156250.2450 7.4 53 91 8 36 156250.4550 11.5 71 118 12 45
156250.0400 3.5 28 66 6 36 156250.2500 7.5 53 91 8 36 156250.4600 11.6 71 118 12 45
156250.0450 3.6 28 66 6 36 156250.2550 7.6 53 91 8 36 156250.4650 11.7 71 118 12 45
156250.0500 3.7 28 66 6 36 156250.2600 7.7 53 91 8 36 156250.4700 11.8 71 118 12 45
156250.0550 3.8 36 74 6 36 156250.2650 7.8 53 91 8 36 156250.4750 11.9 71 118 12 45
156250.0600 3.9 36 74 6 36 156250.2700 7.9 53 91 8 36 156250.4800 12 71 118 12 45
156250.0650 4 36 74 6 36 156250.2750 8 53 91 8 36 156250.4850 12.2 77 124 14 45
156250.0700 4.1 36 74 6 36 156250.2800 8.1 61 103 10 40 156250.4900 12.5 77 124 14 45
156250.0750 4.2 36 74 6 36 156250.2850 8.2 61 103 10 40 156250.4950 12.8 77 124 14 45
156250.0800 4.3 36 74 6 36 156250.2900 8.3 61 103 10 40 156250.5000 13 77 124 14 45
156250.0850 4.4 36 74 6 36 156250.2950 8.4 61 103 10 40 156250.5050 13.3 77 124 14 45
156250.0900 4.5 36 74 6 36 156250.3000 8.5 61 103 10 40 156250.5100 13.5 77 124 14 45
156250.0950 4.6 36 74 6 36 156250.3050 8.6 61 103 10 40 156250.5150 13.7 77 124 14 45
156250.1000 4.65 36 74 6 36 156250.3100 8.7 61 103 10 40 156250.5200 14 77 124 14 45
156250.1050 4.7 36 74 6 36 156250.3150 8.8 61 103 10 40 156250.5250 14.2 83 133 16 48
156250.1100 4.8 44 82 6 36 156250.3200 8.9 61 103 10 40 156250.5300 14.3 83 133 16 48
156250.1150 4.9 44 82 6 36 156250.3250 9 61 103 10 40 156250.5350 14.5 83 133 16 48
156250.1200 5 44 82 6 36 156250.3300 9.1 61 103 10 40 156250.5400 14.7 83 133 16 48
156250.1250 5.1 44 82 6 36 156250.3350 9.2 61 103 10 40 156250.5450 15 83 133 16 48
156250.1300 5.2 44 82 6 36 156250.3400 9.25 61 103 10 40 156250.5500 15.2 83 133 16 48
156250.1350 5.3 44 82 6 36 156250.3450 9.3 61 103 10 40 156250.5550 15.3 83 133 16 48
156250.1400 5.4 44 82 6 36 156250.3500 9.4 61 103 10 40 156250.5600 15.5 83 133 16 48
156250.1450 5.5 44 82 6 36 156250.3550 9.5 61 103 10 40 156250.5650 15.7 83 133 16 48
156250.1500 5.55 44 82 6 36 156250.3600 9.6 61 103 10 40 156250.5700 16 83 133 16 48
156250.1550 5.6 44 82 6 36 156250.3650 9.7 61 103 10 40 156250.5750 16.3 93 143 18 48
156250.1600 5.7 44 82 6 36 156250.3700 9.8 61 103 10 40 156250.5800 16.5 93 143 18 48
156250.1650 5.8 44 82 6 36 156250.3750 9.9 61 103 10 40 156250.5850 16.9 93 143 18 48
156250.1700 5.9 44 82 6 36 156250.3800 10 61 103 10 40 156250.5900 17 93 143 18 48
156250.1750 6 44 82 6 36 156250.3850 10.1 71 118 12 45 156250.5950 17.3 93 143 18 48
156250.1800 6.1 53 91 8 36 156250.3900 10.2 71 118 12 45 156250.6000 17.5 93 143 18 48
156250.1850 6.2 53 91 8 36 156250.3950 10.3 71 118 12 45 156250.6050 18 93 143 18 48
156250.1900 6.3 53 91 8 36 156250.4000 10.4 71 118 12 45 156250.6100 18.5 101 153 20 50
156250.1950 6.4 53 91 8 36 156250.4050 10.5 71 118 12 45 156250.6150 18.9 101 153 20 50
156250.2000 6.5 53 91 8 36 156250.4100 10.6 71 118 12 45 156250.6200 19 101 153 20 50
156250.2050 6.6 53 91 8 36 156250.4150 10.7 71 118 12 45 156250.6250 19.3 101 153 20 50
156250.2100 6.7 53 91 8 36 156250.4200 10.8 71 118 12 45 156250.6300 19.5 101 153 20 50
156250.2150 6.8 53 91 8 36 156250.4250 10.9 71 118 12 45 156250.6350 20 101 153 20 50
