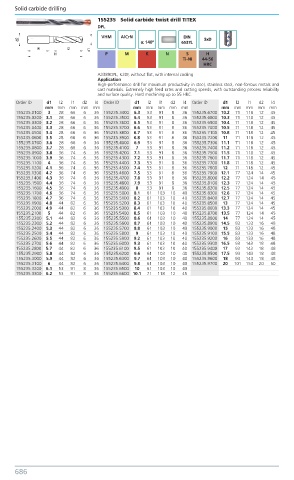

Page 695 - Benma | Blue book 5.0

Solid carbide drilling Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
1 55235 Solid carbide twist drill TITEX
DPL
VHM AlCrN DIN 5xD
α: 140º 6537L
P M K N S H
Ti-Ni 44-56
HRC
A3389DPL, K30F, without flat, with internal cooling
Application
High-performance drill for maximum productivity in steel, stainless steel, non-ferrous metals and
cast materials. Extremely high feed rates and cutting speeds, with outstanding process reliability
and surface quality. Hard machining up to 55 HRC.
Order ID d1 l2 l1 d2 l4 Order ID d1 l2 l1 d2 l4 Order ID d1 l2 l1 d2 l4
mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm
155235.0100 3 28 66 6 36 155235.3400 6.3 53 91 8 36 155235.6700 10.2 71 118 12 45
155235.0200 3.1 28 66 6 36 155235.3500 6.4 53 91 8 36 155235.6800 10.3 71 118 12 45
155235.0300 3.2 28 66 6 36 155235.3600 6.5 53 91 8 36 155235.6900 10.4 71 118 12 45
155235.0400 3.3 28 66 6 36 155235.3700 6.6 53 91 8 36 155235.7000 10.5 71 118 12 45
155235.0500 3.4 28 66 6 36 155235.3800 6.7 53 91 8 36 155235.7100 10.8 71 118 12 45
155235.0600 3.5 28 66 6 36 155235.3900 6.8 53 91 8 36 155235.7200 11 71 118 12 45
155235.0700 3.6 28 66 6 36 155235.4000 6.9 53 91 8 36 155235.7300 11.1 71 118 12 45
155235.0800 3.7 28 66 6 36 155235.4100 7 53 91 8 36 155235.7400 11.2 71 118 12 45
155235.0900 3.8 36 74 6 36 155235.4200 7.1 53 91 8 36 155235.7500 11.5 71 118 12 45
155235.1000 3.9 36 74 6 36 155235.4300 7.2 53 91 8 36 155235.7600 11.7 71 118 12 45
155235.1100 4 36 74 6 36 155235.4400 7.3 53 91 8 36 155235.7700 11.8 71 118 12 45
155235.1200 4.1 36 74 6 36 155235.4500 7.4 53 91 8 36 155235.7800 12 71 118 12 45
155235.1300 4.2 36 74 6 36 155235.4600 7.5 53 91 8 36 155235.7900 12.1 77 124 14 45
155235.1400 4.3 36 74 6 36 155235.4700 7.8 53 91 8 36 155235.8000 12.2 77 124 14 45
155235.1500 4.4 36 74 6 36 155235.4800 7.9 53 91 8 36 155235.8100 12.3 77 124 14 45
155235.1600 4.5 36 74 6 36 155235.4900 8 53 91 8 36 155235.8200 12.5 77 124 14 45
155235.1700 4.6 36 74 6 36 155235.5000 8.1 61 103 10 40 155235.8300 12.6 77 124 14 45
155235.1800 4.7 36 74 6 36 155235.5100 8.2 61 103 10 40 155235.8400 12.7 77 124 14 45
155235.1900 4.8 44 82 6 36 155235.5200 8.3 61 103 10 40 155235.8500 13 77 124 14 45
155235.2000 4.9 44 82 6 36 155235.5300 8.4 61 103 10 40 155235.8600 13.3 77 124 14 45
155235.2100 5 44 82 6 36 155235.5400 8.5 61 103 10 40 155235.8700 13.5 77 124 14 45
155235.2200 5.1 44 82 6 36 155235.5500 8.6 61 103 10 40 155235.8800 14 77 124 14 45
155235.2300 5.2 44 82 6 36 155235.5600 8.7 61 103 10 40 155235.8900 14.5 83 133 16 48
155235.2400 5.3 44 82 6 36 155235.5700 8.8 61 103 10 40 155235.9000 15 83 133 16 48
155235.2500 5.4 44 82 6 36 155235.5800 9 61 103 10 40 155235.9100 15.5 83 133 16 48
155235.2600 5.5 44 82 6 36 155235.5900 9.2 61 103 10 40 155235.9200 16 83 133 16 48
155235.2700 5.6 44 82 6 36 155235.6000 9.3 61 103 10 40 155235.9300 16.5 93 143 18 48
155235.2800 5.7 44 82 6 36 155235.6100 9.5 61 103 10 40 155235.9400 17 93 143 18 48
155235.2900 5.8 44 82 6 36 155235.6200 9.6 61 103 10 40 155235.9500 17.5 93 143 18 48
155235.3000 5.9 44 82 6 36 155235.6300 9.7 61 103 10 40 155235.9600 18 93 143 18 48
155235.3100 6 44 82 6 36 155235.6400 9.8 61 103 10 40 155235.9700 20 101 153 20 50
155235.3200 6.1 53 91 8 36 155235.6500 10 61 103 10 40
155235.3300 6.2 53 91 8 36 155235.6600 10.1 71 118 12 45
