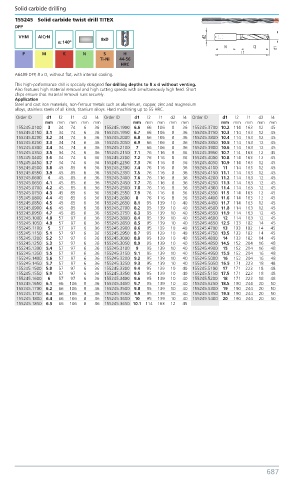

Solid carbide drilling Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
1 55245 Solid carbide twist drill TITEX
DPP
VHM AlCrN 8xD
α: 140º
P M K N S H
Ti-Ni 44-56
HRC
A6489 DPP, 8 x D, without flat, with internal cooling.
This high-performance drill is specially designed for drilling depths to 8 x d without venting.
Also features high material removal and high cutting speeds with simultaneously high feed. Short
chips ensure that material removal runs securely.
Application
Steel and cast iron materials, non-ferrous metals such as aluminium, copper, zinc and magnesium
alloys, stainless steels of all kinds, titanium alloys. Hard machining up to 55 HRC.
Order ID d1 l2 l1 d2 l4 Order ID d1 l2 l1 d2 l4 Order ID d1 l2 l1 d2 l4
mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm
155245.0100 3 34 74 6 36 155245.1900 6.6 66 106 8 36 155245.3700 10.2 114 163 12 45
155245.0150 3.1 34 74 6 36 155245.1950 6.7 66 106 8 36 155245.3750 10.3 114 163 12 45
155245.0200 3.2 34 74 6 36 155245.2000 6.8 66 106 8 36 155245.3800 10.4 114 163 12 45
155245.0250 3.3 34 74 6 36 155245.2050 6.9 66 106 8 36 155245.3850 10.5 114 163 12 45
155245.0300 3.4 34 74 6 36 155245.2100 7 66 106 8 36 155245.3900 10.6 114 163 12 45
155245.0350 3.5 34 74 6 36 155245.2150 7.1 76 116 8 36 155245.3950 10.7 114 163 12 45
155245.0400 3.6 34 74 6 36 155245.2200 7.2 76 116 8 36 155245.4000 10.8 114 163 12 45
155245.0450 3.7 34 74 6 36 155245.2250 7.3 76 116 8 36 155245.4050 10.9 114 163 12 45
155245.0500 3.8 45 85 6 36 155245.2300 7.4 76 116 8 36 155245.4100 11 114 163 12 45
155245.0550 3.9 45 85 6 36 155245.2350 7.5 76 116 8 36 155245.4150 11.1 114 163 12 45
155245.0600 4 45 85 6 36 155245.2400 7.6 76 116 8 36 155245.4200 11.2 114 163 12 45
155245.0650 4.1 45 85 6 36 155245.2450 7.7 76 116 8 36 155245.4250 11.3 114 163 12 45
155245.0700 4.2 45 85 6 36 155245.2500 7.8 76 116 8 36 155245.4300 11.4 114 163 12 45
155245.0750 4.3 45 85 6 36 155245.2550 7.9 76 116 8 36 155245.4350 11.5 114 163 12 45
155245.0800 4.4 45 85 6 36 155245.2600 8 76 116 8 36 155245.4400 11.6 114 163 12 45
155245.0850 4.5 45 85 6 36 155245.2650 8.1 95 139 10 40 155245.4450 11.7 114 163 12 45
155245.0900 4.6 45 85 6 36 155245.2700 8.2 95 139 10 40 155245.4500 11.8 114 163 12 45
155245.0950 4.7 45 85 6 36 155245.2750 8.3 95 139 10 40 155245.4550 11.9 114 163 12 45
155245.1000 4.8 57 97 6 36 155245.2800 8.4 95 139 10 40 155245.4600 12 114 163 12 45
155245.1050 4.9 57 97 6 36 155245.2850 8.5 95 139 10 40 155245.4650 12.5 133 182 14 45
155245.1100 5 57 97 6 36 155245.2900 8.6 95 139 10 40 155245.4700 13 133 182 14 45
155245.1150 5.1 57 97 6 36 155245.2950 8.7 95 139 10 40 155245.4750 13.5 133 182 14 45
155245.1200 5.2 57 97 6 36 155245.3000 8.8 95 139 10 40 155245.4800 14 133 182 14 45
155245.1250 5.3 57 97 6 36 155245.3050 8.9 95 139 10 40 155245.4850 14.5 152 204 16 48
155245.1300 5.4 57 97 6 36 155245.3100 9 95 139 10 40 155245.4900 15 152 204 16 48
155245.1350 5.5 57 97 6 36 155245.3150 9.1 95 139 10 40 155245.4950 15.5 152 204 16 48
155245.1400 5.6 57 97 6 36 155245.3200 9.2 95 139 10 40 155245.5000 16 152 204 16 48
155245.1450 5.7 57 97 6 36 155245.3250 9.3 95 139 10 40 155245.5050 16.5 171 223 18 48
155245.1500 5.8 57 97 6 36 155245.3300 9.4 95 139 10 40 155245.5100 17 171 223 18 48
155245.1550 5.9 57 97 6 36 155245.3350 9.5 95 139 10 40 155245.5150 17.5 171 223 18 48
155245.1600 6 57 97 6 36 155245.3400 9.6 95 139 10 40 155245.5200 18 171 223 18 48
155245.1650 6.1 66 106 8 36 155245.3450 9.7 95 139 10 40 155245.5250 18.5 190 244 20 50
155245.1700 6.2 66 106 8 36 155245.3500 9.8 95 139 10 40 155245.5300 19 190 244 20 50
155245.1750 6.3 66 106 8 36 155245.3550 9.9 95 139 10 40 155245.5350 19.5 190 244 20 50
155245.1800 6.4 66 106 8 36 155245.3600 10 95 139 10 40 155245.5400 20 190 244 20 50
155245.1850 6.5 66 106 8 36 155245.3650 10.1 114 163 12 45
