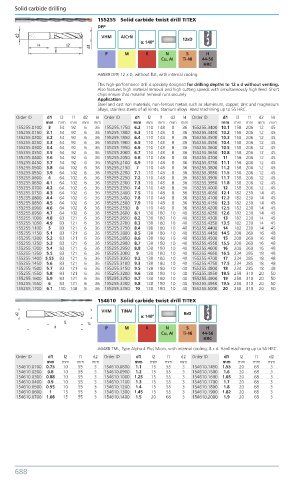

Page 697 - Benma | Blue book 5.0

Solid carbide drilling Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
155255 Solid carbide twist drill TITEX
DPP
VHM AlCrN 12xD
α: 140º
P M K N S H
Cu, AI Ti-Ni 44-56
HRC
A6589 DPP, 12 x D, without flat, with internal cooling.
This high-performance drill is specially designed for drilling depths to 12 x d without venting.
Also features high material removal and high cutting speeds with simultaneously high feed. Short
chips ensure that material removal runs securely.
Application
Steel and cast iron materials, non-ferrous metals such as aluminium, copper, zinc and magnesium
alloys, stainless steels of all kinds, titanium alloys. Hard machining up to 55 HRC.
Order ID d1 l2 l1 d2 l4 Order ID d1 l2 l1 d2 l4 Order ID d1 l2 l1 d2 l4
mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm
155255.0100 3 54 92 6 36 155255.1750 6.2 110 148 8 36 155255.3400 10.1 158 206 12 45
155255.0150 3.1 54 92 6 36 155255.1800 6.3 110 148 8 36 155255.3450 10.2 158 206 12 45
155255.0200 3.2 54 92 6 36 155255.1850 6.4 110 148 8 36 155255.3500 10.3 158 206 12 45
155255.0250 3.3 54 92 6 36 155255.1900 6.5 110 148 8 36 155255.3550 10.4 158 206 12 45
155255.0300 3.4 54 92 6 36 155255.1950 6.6 110 148 8 36 155255.3600 10.5 158 206 12 45
155255.0350 3.5 54 92 6 36 155255.2000 6.7 110 148 8 36 155255.3650 10.8 158 206 12 45
155255.0400 3.6 54 92 6 36 155255.2050 6.8 110 148 8 36 155255.3700 11 158 206 12 45
155255.0450 3.7 54 92 6 36 155255.2100 6.9 110 148 8 36 155255.3750 11.1 158 206 12 45
155255.0500 3.8 64 102 6 36 155255.2150 7 110 148 8 36 155255.3800 11.2 158 206 12 45
155255.0550 3.9 64 102 6 36 155255.2200 7.1 110 148 8 36 155255.3850 11.5 158 206 12 45
155255.0600 4 64 102 6 36 155255.2250 7.2 110 148 8 36 155255.3900 11.7 158 206 12 45
155255.0650 4.1 64 102 6 36 155255.2300 7.3 110 148 8 36 155255.3950 11.8 158 206 12 45
155255.0700 4.2 64 102 6 36 155255.2350 7.4 110 148 8 36 155255.4000 12 158 206 12 45
155255.0750 4.3 64 102 6 36 155255.2400 7.5 110 148 8 36 155255.4050 12.1 182 230 14 45
155255.0800 4.4 64 102 6 36 155255.2450 7.8 110 148 8 36 155255.4100 12.2 182 230 14 45
155255.0850 4.5 64 102 6 36 155255.2500 7.9 110 148 8 36 155255.4150 12.3 182 230 14 45
155255.0900 4.6 64 102 6 36 155255.2550 8 110 148 8 36 155255.4200 12.5 182 230 14 45
155255.0950 4.7 64 102 6 36 155255.2600 8.1 138 180 10 40 155255.4250 12.6 182 230 14 45
155255.1000 4.8 83 121 6 36 155255.2650 8.2 138 180 10 40 155255.4300 13 182 230 14 45
155255.1050 4.9 83 121 6 36 155255.2700 8.3 138 180 10 40 155255.4350 13.5 182 230 14 45
155255.1100 5 83 121 6 36 155255.2750 8.4 138 180 10 40 155255.4400 14 182 230 14 45
155255.1150 5.1 83 121 6 36 155255.2800 8.5 138 180 10 40 155255.4450 14.5 208 260 16 48
155255.1200 5.2 83 121 6 36 155255.2850 8.6 138 180 10 40 155255.4500 15 208 260 16 48
155255.1250 5.3 83 121 6 36 155255.2900 8.7 138 180 10 40 155255.4550 15.5 208 260 16 48
155255.1300 5.4 83 121 6 36 155255.2950 8.8 138 180 10 40 155255.4600 16 208 260 16 48
155255.1350 5.5 83 121 6 36 155255.3000 9 138 180 10 40 155255.4650 16.5 234 285 18 48
155255.1400 5.55 83 121 6 36 155255.3050 9.2 138 180 10 40 155255.4700 17 234 285 18 48
155255.1450 5.6 83 121 6 36 155255.3100 9.3 138 180 10 40 155255.4750 17.5 234 285 18 48
155255.1500 5.7 83 121 6 36 155255.3150 9.5 138 180 10 40 155255.4800 18 234 285 18 48
155255.1550 5.8 83 121 6 36 155255.3200 9.6 138 180 10 40 155255.4850 18.5 258 310 20 50
155255.1600 5.9 83 121 6 36 155255.3250 9.7 138 180 10 40 155255.4900 19 258 310 20 50
155255.1650 6 83 121 6 36 155255.3300 9.8 138 180 10 40 155255.4950 19.5 258 310 20 50
155255.1700 6.1 110 148 8 36 155255.3350 10 138 180 10 40 155255.5000 20 258 310 20 50

154610 Solid carbide twist drill TITEX
VHM TiNAl 8xD
α: 140º
P M K N S H
Cu, AI Ti-Ni 44-56
HRC

A6488 TML, Type Alpha 4 Plus Micro, with internal cooling, 8 x d. Hard machining up to 55 HRC.
Order ID d1 l2 l1 d2 Order ID d1 l2 l1 d2 Order ID d1 l2 l1 d2
mm mm mm mm mm mm mm mm mm mm mm mm
154610.0100 0.75 10 55 3 154610.0800 1.1 15 55 3 154610.1450 1.55 20 68 3
154610.0200 0.8 10 55 3 154610.0900 1.2 15 55 3 154610.1500 1.6 20 68 3
154610.0300 0.88 10 55 3 154610.1000 1.25 15 55 3 154610.1600 1.65 20 68 3
154610.0400 0.9 10 55 3 154610.1100 1.3 15 55 3 154610.1700 1.7 20 68 3
154610.0500 0.95 10 55 3 154610.1200 1.4 15 55 3 154610.1800 1.8 20 68 3
154610.0600 1 15 55 3 154610.1300 1.45 15 55 3 154610.1900 1.82 20 68 3
154610.0700 1.08 15 55 3 154610.1400 1.5 20 68 3 154610.2000 1.9 20 68 3
