HSS Drilling Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch

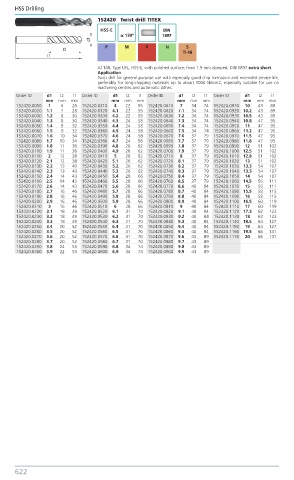

1 52420 Twist drill TITEX

HSS-E DIN
α: 130º 1897
P M K N S
Ti-Ni

A1148, Type UFL, HSS-E, with polished surface; from 1.9 mm damped; DIN 1897 extra short.
Application
Twist drill for general purpose use with especially good chip formation and extended service life,
preferably for long-chipping materials up to about 1000 N/mm2, especially suitable for use on
machining centres and automatic lathes.
Order ID d1 l2 l1 Order ID d1 l2 l1 Order ID d1 l2 l1 Order ID d1 l2 l1
mm mm mm mm mm mm mm mm mm mm mm mm
152420.0010 1 6 26 152420.0310 4 22 55 152420.0610 7 34 74 152420.0910 10 43 89
152420.0020 1.1 7 28 152420.0320 4.1 22 55 152420.0620 7.1 34 74 152420.0920 10.2 43 89
152420.0030 1.2 8 30 152420.0330 4.2 22 55 152420.0630 7.2 34 74 152420.0930 10.5 43 89
152420.0040 1.3 8 30 152420.0340 4.3 24 58 152420.0640 7.3 34 74 152420.0940 10.8 47 95
152420.0050 1.4 9 32 152420.0350 4.4 24 58 152420.0650 7.4 34 74 152420.0950 11 47 95
152420.0060 1.5 9 32 152420.0360 4.5 24 58 152420.0660 7.5 34 74 152420.0960 11.2 47 95
152420.0070 1.6 10 34 152420.0370 4.6 24 58 152420.0670 7.6 37 79 152420.0970 11.5 47 95
152420.0080 1.7 10 34 152420.0380 4.7 24 58 152420.0680 7.7 37 79 152420.0980 11.8 47 95
152420.0090 1.8 11 36 152420.0390 4.8 26 62 152420.0690 7.8 37 79 152420.0990 12 51 102
152420.0100 1.9 11 36 152420.0400 4.9 26 62 152420.0700 7.9 37 79 152420.1000 12.5 51 102
152420.0110 2 12 38 152420.0410 5 26 62 152420.0710 8 37 79 152420.1010 12.8 51 102
152420.0120 2.1 12 38 152420.0420 5.1 26 62 152420.0720 8.1 37 79 152420.1020 13 51 102
152420.0130 2.2 13 40 152420.0430 5.2 26 62 152420.0730 8.2 37 79 152420.1030 13.3 54 107
152420.0140 2.3 13 40 152420.0440 5.3 26 62 152420.0740 8.3 37 79 152420.1040 13.5 54 107
152420.0150 2.4 14 43 152420.0450 5.4 28 66 152420.0750 8.4 37 79 152420.1050 14 54 107
152420.0160 2.5 14 43 152420.0460 5.5 28 66 152420.0760 8.5 37 79 152420.1060 14.5 56 111
152420.0170 2.6 14 43 152420.0470 5.6 28 66 152420.0770 8.6 40 84 152420.1070 15 56 111
152420.0180 2.7 16 46 152420.0480 5.7 28 66 152420.0780 8.7 40 84 152420.1080 15.5 58 115
152420.0190 2.8 16 46 152420.0490 5.8 28 66 152420.0790 8.8 40 84 152420.1090 16 58 115
152420.0200 2.9 16 46 152420.0500 5.9 28 66 152420.0800 8.9 40 84 152420.1100 16.5 60 119
152420.0210 3 16 46 152420.0510 6 28 66 152420.0810 9 40 84 152420.1110 17 60 119
152420.0220 3.1 18 49 152420.0520 6.1 31 70 152420.0820 9.1 40 84 152420.1120 17.5 62 123
152420.0230 3.2 18 49 152420.0530 6.2 31 70 152420.0830 9.2 40 84 152420.1130 18 62 123
152420.0240 3.3 18 49 152420.0540 6.3 31 70 152420.0840 9.3 40 84 152420.1140 18.5 64 127
152420.0250 3.4 20 52 152420.0550 6.4 31 70 152420.0850 9.4 40 84 152420.1150 19 64 127
152420.0260 3.5 20 52 152420.0560 6.5 31 70 152420.0860 9.5 40 84 152420.1160 19.5 66 131
152420.0270 3.6 20 52 152420.0570 6.6 31 70 152420.0870 9.6 43 89 152420.1170 20 66 131
152420.0280 3.7 20 52 152420.0580 6.7 31 70 152420.0880 9.7 43 89
152420.0290 3.8 22 55 152420.0590 6.8 34 74 152420.0890 9.8 43 89
152420.0300 3.9 22 55 152420.0600 6.9 34 74 152420.0900 9.9 43 89
