HSS Drilling Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch

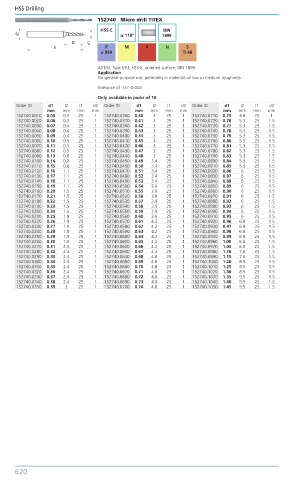

1 52740 Micro drill TITEX

HSS-E DIN
α: 118º 1899
P M K N S
≤ 850 Ti-Ni

A3143, Type ESU, HSS-E, polished surface; DIN 1899.
Application
For general-purpose use, preferably in materials of low to medium toughness.
Tolerance d1: 0 / -0.004
Only available in packs of 10.
Order ID d1 l2 l1 d2 Order ID d1 l2 l1 d2 Order ID d1 l2 l1 d2
mm mm mm mm mm mm mm mm mm mm mm mm
152740.0010 0.05 0.3 25 1 152740.0360 0.40 3 25 1 152740.0710 0.75 4.8 25 1
152740.0020 0.06 0.3 25 1 152740.0370 0.41 3 25 1 152740.0720 0.76 5.3 25 1.5
152740.0030 0.07 0.4 25 1 152740.0380 0.42 3 25 1 152740.0730 0.77 5.3 25 1.5
152740.0040 0.08 0.4 25 1 152740.0390 0.43 3 25 1 152740.0740 0.78 5.3 25 1.5
152740.0050 0.09 0.4 25 1 152740.0400 0.44 3 25 1 152740.0750 0.79 5.3 25 1.5
152740.0060 0.10 0.5 25 1 152740.0410 0.45 3 25 1 152740.0760 0.80 5.3 25 1.5
152740.0070 0.11 0.5 25 1 152740.0420 0.46 3 25 1 152740.0770 0.81 5.3 25 1.5
152740.0080 0.12 0.5 25 1 152740.0430 0.47 3 25 1 152740.0780 0.82 5.3 25 1.5
152740.0090 0.13 0.8 25 1 152740.0440 0.48 3 25 1 152740.0790 0.83 5.3 25 1.5
152740.0100 0.14 0.8 25 1 152740.0450 0.49 3.4 25 1 152740.0800 0.84 5.3 25 1.5
152740.0110 0.15 0.8 25 1 152740.0460 0.50 3.4 25 1 152740.0810 0.85 5.3 25 1.5
152740.0120 0.16 1.1 25 1 152740.0470 0.51 3.4 25 1 152740.0820 0.86 6 25 1.5
152740.0130 0.17 1.1 25 1 152740.0480 0.52 3.4 25 1 152740.0830 0.87 6 25 1.5
152740.0140 0.18 1.1 25 1 152740.0490 0.53 3.4 25 1 152740.0840 0.88 6 25 1.5
152740.0150 0.19 1.1 25 1 152740.0500 0.54 3.9 25 1 152740.0850 0.89 6 25 1.5
152740.0160 0.20 1.5 25 1 152740.0510 0.55 3.9 25 1 152740.0860 0.90 6 25 1.5
152740.0170 0.21 1.5 25 1 152740.0520 0.56 3.9 25 1 152740.0870 0.91 6 25 1.5
152740.0180 0.22 1.5 25 1 152740.0530 0.57 3.9 25 1 152740.0880 0.92 6 25 1.5
152740.0190 0.23 1.5 25 1 152740.0540 0.58 3.9 25 1 152740.0890 0.93 6 25 1.5
152740.0200 0.24 1.5 25 1 152740.0550 0.59 3.9 25 1 152740.0900 0.94 6 25 1.5
152740.0210 0.25 1.9 25 1 152740.0560 0.60 3.9 25 1 152740.0910 0.95 6 25 1.5
152740.0220 0.26 1.9 25 1 152740.0570 0.61 4.2 25 1 152740.0920 0.96 6.8 25 1.5
152740.0230 0.27 1.9 25 1 152740.0580 0.62 4.2 25 1 152740.0930 0.97 6.8 25 1.5
152740.0240 0.28 1.9 25 1 152740.0590 0.63 4.2 25 1 152740.0940 0.98 6.8 25 1.5
152740.0250 0.29 1.9 25 1 152740.0600 0.64 4.2 25 1 152740.0950 0.99 6.8 25 1.5
152740.0260 0.30 1.9 25 1 152740.0610 0.65 4.2 25 1 152740.0960 1.00 6.8 25 1.5
152740.0270 0.31 2.4 25 1 152740.0620 0.66 4.2 25 1 152740.0970 1.05 6.8 25 1.5
152740.0280 0.32 2.4 25 1 152740.0630 0.67 4.2 25 1 152740.0980 1.10 7.6 25 1.5
152740.0290 0.33 2.4 25 1 152740.0640 0.68 4.8 25 1 152740.0990 1.15 7.6 25 1.5
152740.0300 0.34 2.4 25 1 152740.0650 0.69 4.8 25 1 152740.1000 1.20 8.5 25 1.5
152740.0310 0.35 2.4 25 1 152740.0660 0.70 4.8 25 1 152740.1010 1.25 8.5 25 1.5
152740.0320 0.36 2.4 25 1 152740.0670 0.71 4.8 25 1 152740.1020 1.30 8.5 25 1.5
152740.0330 0.37 2.4 25 1 152740.0680 0.72 4.8 25 1 152740.1030 1.35 9.5 25 1.5
152740.0340 0.38 2.4 25 1 152740.0690 0.73 4.8 25 1 152740.1040 1.40 9.5 25 1.5
152740.0350 0.39 3 25 1 152740.0700 0.74 4.8 25 1 152740.1050 1.45 9.5 25 1.5
