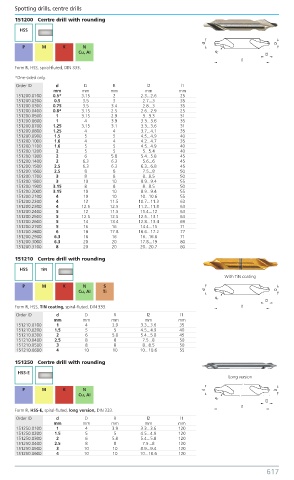

P. 626
Spotting drills, centre drills Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
151200 Centre drill with rounding
HSS
P M K N
Cu, AI
Form R, HSS, spiral-fluted, DIN 333.
*One-sided only.
Order ID d D R l2 l1
mm mm mm mm mm
151200.0100 0.5* 3.15 2 2.3...2.6 25
151200.0200 0.5 3.5 3 2.7...3 35
151200.0300 0.75 3.5 3.4 2.8...3 35
151200.0400 0.8* 3.15 2.5 2.6...2.9 25
151200.0500 1 3.15 2.9 3...3.3 31
151200.0600 1 4 3.9 3.3...3.6 35
151200.0700 1.25 3.15 3.1 3.3...3.6 31
151200.0800 1.25 4 4 3.7...4.1 35
151200.0900 1.5 5 5 4.5...4.9 40
151200.1000 1.6 4 4 4.2...4.7 35
151200.1100 1.6 5 5 4.5...4.9 40
151200.1200 2 5 5 5...5.4 40
151200.1300 2 6 5.8 5.4...5.8 45
151200.1400 2 6.3 6.3 5.6...6 45
151200.1500 2.5 6.3 6.3 6.3...6.8 45
151200.1600 2.5 8 8 7.5...8 50
151200.1700 3 8 8 8...8.5 50
151200.1800 3 10 10 8.9...9.4 55
151200.1900 3.15 8 8 8...8.5 50
151200.2000 3.15 10 10 8.9...9.4 55
151200.2100 4 10 10 10...10.6 55
151200.2200 4 12 11.5 10.7...11.3 63
151200.2300 4 12.5 12.5 11.2...11.8 63
151200.2400 5 12 11.5 11.4...12 63
151200.2500 5 12.5 12.5 12.5...13.1 63
151200.2600 5 14 13.4 12.8...13.4 69
151200.2700 5 16 16 14.4...15 71
151200.2800 6 18 17.8 16.6...17.2 77
151200.2900 6.3 16 16 16...16.6 71
151200.3000 6.3 20 20 17.8...19 80
151200.3100 8 20 20 20...20.7 80
151210 Centre drill with rounding
HSS TiN
With TiN coating
P M K N S
Cu, AI Ti
Form R, HSS, TiN coating, spiral-fluted, DIN 333.
Order ID d D R l2 l1
mm mm mm mm mm
151210.0100 1 4 3.9 3.3...3.6 35
151210.0200 1.5 5 5 4.5...4.9 40
151210.0300 2 6 5.8 5.4...5.8 45
151210.0400 2.5 8 8 7.5...8 50
151210.0500 3 8 8 8...8.5 50
151210.0600 4 10 10 10...10.6 55
151250 Centre drill with rounding
HSS-E
Long version
P M K N
Cu, AI
Form R, HSS-E, spiral-fluted, long version, DIN 333.
Order ID d D R l2 l1
mm mm mm mm mm
151250.0100 1 4 3.9 3.3...3.6 120
151250.0200 1.5 5 5 4.5...4.9 120
151250.0300 2 6 5.8 5.4...5.8 120
151250.0400 2.5 8 8 7.5...8 120
151250.0500 3 10 10 8.9...9.4 120
151250.0600 4 10 10 10...10.6 120
