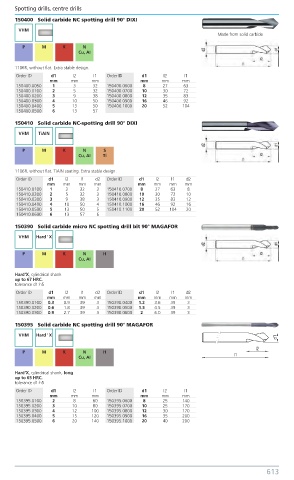

Page 622 - Benma | Blue book 5.0

Spotting drills, centre drills Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
150400 Solid carbide NC spotting drill 90° DIXI

VHM
Made from solid carbide
P M K N
Cu, AI

1106R, without flat. Extra stable design.
Order ID d1 l2 l1 Order ID d1 l2 l1
mm mm mm mm mm mm
150400.0050 1 3 32 150400.0600 8 27 63
150400.0100 2 5 32 150400.0700 10 30 72
150400.0200 3 9 38 150400.0800 12 35 83
150400.0300 4 10 50 150400.0900 16 46 92
150400.0400 5 13 50 150400.1000 20 52 104
150400.0500 6 13 57
150410 Solid carbide NC-spotting drill 90° DIXI
VHM TiAIN

P M K N S
Cu, AI Ti

1106R, without flat, TiAlN coating. Extra stable design.
Order ID d1 l2 l1 d2 Order ID d1 l2 l1 d2
mm mm mm mm mm mm mm mm
150410.0100 1 3 32 3 150410.0700 8 27 63 8
150410.0200 2 5 32 3 150410.0800 10 30 72 10
150410.0300 3 9 38 3 150410.0900 12 35 83 12
150410.0400 4 10 50 4 150410.1000 16 46 92 16
150410.0500 5 13 50 5 150410.1100 20 52 104 20
150410.0600 6 13 57 6
150390 Solid carbide micro NC spotting drill bit 90° MAGAFOR
VHM Hard ' X

P M K N H
Cu, AI

Hard‘X, cylindrical shank
up to 67 HRC.
tolerance d1:h5
Order ID d1 l2 l1 d2 Order ID d1 l2 l1 d2
mm mm mm mm mm mm mm mm
150390.0100 0.3 0.9 39 3 150390.0400 1.2 3.6 39 3
150390.0200 0.6 1.8 39 3 150390.0500 1.5 4.5 39 3
150390.0300 0.9 2.7 39 3 150390.0600 2 6.0 39 3

150395 Solid carbide NC spotting drill 90° MAGAFOR
VHM Hard ' X

P M K N H
Cu, AI

Hard‘X, cylindrical shank, long
up to 65 HRC.
tolerance d1:h5
Order ID d1 l2 l1 Order ID d1 l2 l1
mm mm mm mm mm mm
150395.0100 2 8 60 150395.0600 8 25 140
150395.0200 3 10 80 150395.0700 10 25 170
150395.0300 4 12 100 150395.0800 12 30 170
150395.0400 5 15 120 150395.0900 16 35 200
150395.0500 6 20 140 150395.1000 20 40 200

Brütsch/Rüegger Tools Ltd. • Heinrich Stutz-Strasse 20 • P.O. Box • CH-8902 Urdorf • www.brw.ch 613
