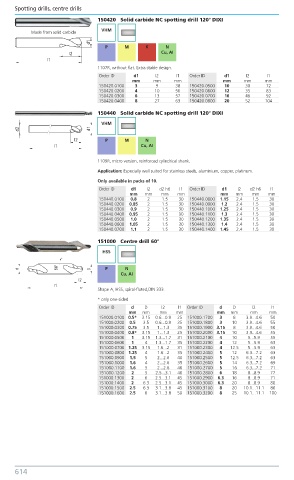

P. 623
Spotting drills, centre drills Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
150420 Solid carbide NC spotting drill 120° DIXI
VHM
Made from solid carbide
P M K N
Cu, AI
1107R, without flat. Extra stable design.
Order ID d1 l2 l1 Order ID d1 l2 l1
mm mm mm mm mm mm
150420.0100 3 9 38 150420.0500 10 30 72
150420.0200 4 10 50 150420.0600 12 35 83
150420.0300 6 13 57 150420.0700 16 46 92
150420.0400 8 27 63 150420.0800 20 52 104
150440 Solid carbide NC spotting drill 120° DIXI
VHM
P M N
Cu, AI
1109R, micro version, reinforced cylindrical shank.
Application: Especially well suited for stainless steels, aluminium, copper, platinum.
Only available in packs of 10.
Order ID d1 l2 d2 h6 l1 Order ID d1 l2 d2 h6 l1
mm mm mm mm mm mm mm mm
150440.0100 0.8 2 1.5 30 150440.0800 1.15 2.4 1.5 30
150440.0200 0.85 2 1.5 30 150440.0900 1.2 2.4 1.5 30
150440.0300 0.9 2 1.5 30 150440.1000 1.25 2.4 1.5 30
150440.0400 0.95 2 1.5 30 150440.1100 1.3 2.4 1.5 30
150440.0500 1.0 2 1.5 30 150440.1200 1.35 2.4 1.5 30
150440.0600 1.05 2 1.5 30 150440.1300 1.4 2.4 1.5 30
150440.0700 1.1 2 1.5 30 150440.1400 1.45 2.4 1.5 30
151000 Centre drill 60°
HSS
P N
Cu, AI
Shape A, HSS, spiral-fluted,DIN 333.
* only one-sided
Order ID d D l2 l1 Order ID d D l2 l1
mm mm mm mm mm mm mm mm
151000.0100 0.5* 3.15 0.6...0.9 25 151000.1700 3 8 3.9...4.6 50
151000.0200 0.5 3.5 0.6...0.9 35 151000.1800 3 10 3.9...4.6 55
151000.0300 0.75 3.5 1...1.3 35 151000.1900 3.15 8 3.9...4.6 50
151000.0400 0.8* 3.15 1...1.3 25 151000.2000 3.15 10 3.9...4.6 55
151000.0500 1 3.15 1.3...1.7 31 151000.2100 4 10 5...5.9 55
151000.0600 1 4 1.3...1.7 35 151000.2200 4 12 5...5.9 63
151000.0700 1.25 3.15 1.6...2 31 151000.2300 4 12.5 5...5.9 63
151000.0800 1.25 4 1.6...2 35 151000.2400 5 12 6.3...7.2 63
151000.0900 1.5 5 2...2.6 40 151000.2500 5 12.5 6.3...7.2 63
151000.1000 1.6 4 2...2.6 35 151000.2600 5 14 6.3...7.2 69
151000.1100 1.6 5 2...2.6 40 151000.2700 5 16 6.3...7.2 71
151000.1200 2 5 2.5...3.1 40 151000.2800 6 18 8...8.9 77
151000.1300 2 6 2.5...3.1 45 151000.2900 6.3 16 8...8.9 71
151000.1400 2 6.3 2.5...3.1 45 151000.3000 6.3 20 8...8.9 80
151000.1500 2.5 6.3 3.1...3.8 45 151000.3100 8 20 10.1...11.1 80
151000.1600 2.5 8 3.1...3.8 50 151000.3200 8 25 10.1...11.1 100
614 Brütsch/Rüegger Tools Ltd. • Heinrich Stutz-Strasse 20 • P.O. Box • CH-8902 Urdorf • www.brw.ch
