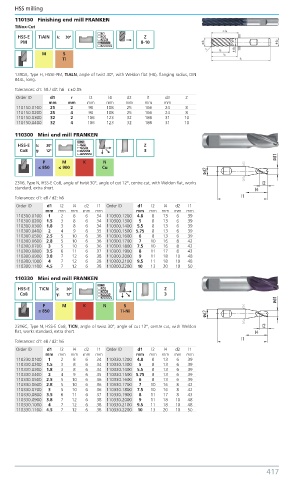

Page 426 - Benma | Blue book 5.0

HSS milling Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
110150 Finishing end mill FRANKEN
TiNox-Cut
HSS-E TiAIN λ: 30º Z
PM 8-10
M S
Ti

1390A, Type H, HSSE-PM, TIALN, angle of twist 30°, with Weldon flat (HB), flanging radius, DIN
844L, long.
Tolerances: d1: h8 / d2: h6 r:±0.05
Order ID d1 r l2 l4 d2 l1 d3 Z
mm mm mm mm mm mm mm
110150.0100 25 2 90 108 25 166 24 8
110150.0200 25 4 90 108 25 166 24 8
110150.0300 32 2 106 123 32 186 31 10
110150.0400 32 4 106 123 32 186 31 10
110300 Mini end mill FRANKEN

HSS-E λ: 30º Z
Co8 γ: 12º 3
P M K N
≤ 850 ≤ 900 Cu

2316, Type N, HSS-E Co8, angle of twist 30°, angle of cut 12°, centre cut, with Weldon flat, works
standard, extra short.
Tolerances: d1: e8 / d2: h6
Order ID d1 l2 l4 d2 l1 Order ID d1 l2 l4 d2 l1
mm mm mm mm mm mm mm mm mm mm
110300.0100 1 2 8 6 34 110300.1200 4.8 8 13 6 39
110300.0200 1.5 3 8 6 34 110300.1300 5 8 13 6 39
110300.0300 1.8 3 8 6 34 110300.1400 5.5 8 13 6 39
110300.0400 2 4 9 6 35 110300.1500 5.75 8 13 6 39
110300.0500 2.5 5 10 6 36 110300.1600 6 8 13 6 39
110300.0600 2.8 5 10 6 36 110300.1700 7 10 16 8 42
110300.0700 3 5 10 6 36 110300.1800 7.5 10 16 8 42
110300.0800 3.5 6 11 6 37 110300.1900 8 11 17 8 43
110300.0900 3.8 7 12 6 38 110300.2000 9 11 18 10 48
110300.1000 4 7 12 6 38 110300.2100 9.5 11 18 10 48
110300.1100 4.5 7 12 6 38 110300.2200 10 13 20 10 50
110330 Mini end mill FRANKEN

HSS-E TiCN λ: 30º Z
Co8 γ: 12º 3
P M K N S
≤ 850 Ti-Ni

2316C, Type N, HSS-E Co8, TiCN, angle of twist 30°, angle of cut 12°, centre cut, with Weldon
flat, works standard, extra short.
Tolerances: d1: e8 / d2: h6
Order ID d1 l2 l4 d2 l1 Order ID d1 l2 l4 d2 l1
mm mm mm mm mm mm mm mm mm mm
110330.0100 1 2 8 6 34 110330.1200 4.8 8 13 6 39
110330.0200 1.5 3 8 6 34 110330.1300 5 8 13 6 39
110330.0300 1.8 3 8 6 34 110330.1400 5.5 8 13 6 39
110330.0400 2 4 9 6 35 110330.1500 5.75 8 13 6 39
110330.0500 2.5 5 10 6 36 110330.1600 6 8 13 6 39
110330.0600 2.8 5 10 6 36 110330.1700 7 10 16 8 42
110330.0700 3 5 10 6 36 110330.1800 7.5 10 16 8 42
110330.0800 3.5 6 11 6 37 110330.1900 8 11 17 8 43
110330.0900 3.8 7 12 6 38 110330.2000 9 11 18 10 48
110330.1000 4 7 12 6 38 110330.2100 9.5 11 18 10 48
110330.1100 4.5 7 12 6 38 110330.2200 10 13 20 10 50
