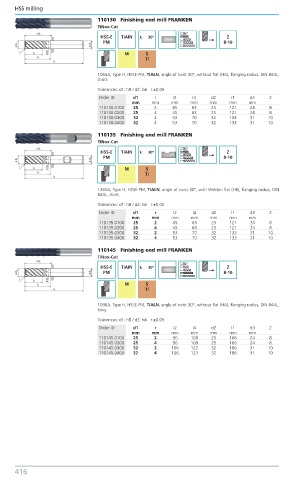

HSS milling Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
110130 Finishing end mill FRANKEN
TiNox-Cut
HSS-E TiAIN λ: 30º Z
PM 8-10
M S
Ti

1065A, Type H, HSSE-PM, TIALN, angle of twist 30°, without flat (HA), flanging radius, DIN 844L,
short.
Tolerances: d1: h8 / d2: h6 r:±0.05
Order ID d1 r l2 l4 d2 l1 d3 Z
mm mm mm mm mm mm mm
110130.0100 25 2 45 63 25 121 24 8
110130.0200 25 4 45 63 25 121 24 8
110130.0300 32 2 53 70 32 133 31 10
110130.0400 32 4 53 70 32 133 31 10
110135 Finishing end mill FRANKEN
TiNox-Cut
HSS-E TiAIN λ: 30º Z
PM 8-10
M S
Ti

1365A, Type H, HSSE-PM, TIALN, angle of twist 30°, with Weldon flat (HB), flanging radius, DIN
844L, short.
Tolerances: d1: h8 / d2: h6 r:±0.05
Order ID d1 r l2 l4 d2 l1 d3 Z
mm mm mm mm mm mm mm
110135.0100 25 2 45 63 25 121 24 8
110135.0200 25 4 45 63 25 121 24 8
110135.0300 32 2 53 70 32 133 31 10
110135.0400 32 4 53 70 32 133 31 10

110145 Finishing end mill FRANKEN
TiNox-Cut
HSS-E TiAIN λ: 30º Z
PM 8-10
M S
Ti

1090A, Type H, HSSE-PM, TIALN, angle of twist 30°, without flat (HA), flanging radius, DIN 844L,
long.
Tolerances: d1: h8 / d2: h6 r:±0.05
Order ID d1 r l2 l4 d2 l1 d3 Z
mm mm mm mm mm mm mm
110145.0100 25 2 90 108 25 166 24 8
110145.0200 25 4 90 108 25 166 24 8
110145.0300 32 2 106 123 32 186 31 10
110145.0400 32 4 106 123 32 186 31 10

416 Brütsch/Rüegger Tools Ltd. • Heinrich Stutz-Strasse 20 • P.O. Box • CH-8902 Urdorf • www.brw.ch
