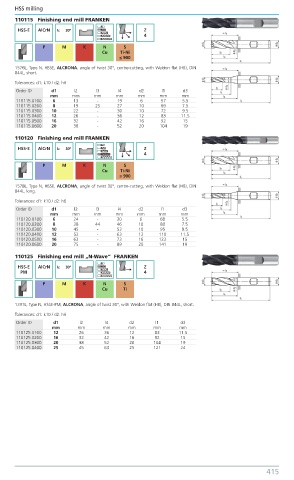

HSS milling Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
110115 Finishing end mill FRANKEN

HSS-E AlCrN λ: 30º Z
4
P M K N S
Cu Ti-Ni
≤ 900
1576L, Type N, HSSE, ALCRONA, angle of twist 30°, centre-cutting, with Weldon flat (HB), DIN
844L, short.
Tolerances: d1: k10 / d2: h6
Order ID d1 l2 l3 l4 d2 l1 d3
mm mm mm mm mm mm mm
110115.0100 6 13 - 19 6 57 5.5
110115.0200 8 19 25 27 10 69 7.5
110115.0300 10 22 - 30 10 72 9.5
110115.0400 12 26 - 36 12 83 11.5
110115.0500 16 32 - 42 16 92 15
110115.0600 20 38 - 52 20 104 19
110120 Finishing end mill FRANKEN
HSS-E AlCrN λ: 30º Z
4

P M K N S
Cu Ti-Ni
≤ 900
1578L, Type N, HSSE, ALCRONA, angle of twist 30°, centre-cutting, with Weldon flat (HB), DIN
844L, long.
Tolerances: d1: k10 / d2: h6
Order ID d1 l2 l3 l4 d2 l1 d3
mm mm mm mm mm mm mm
110120.0100 6 24 - 30 6 68 5.5
110120.0200 8 38 44 46 10 88 7.5
110120.0300 10 45 - 53 10 95 9.5
110120.0400 12 53 - 63 12 110 11.5
110120.0500 16 63 - 73 16 123 15
110120.0600 20 75 - 89 20 141 19
110125 Finishing end mill „N-Wave“ FRANKEN
HSS-E AlCrN λ: 30º Z
PM 4
P M K N S
Cu Ti

1391L, Type N, HSSE-PM, ALCRONA, angle of twist 30°, with Weldon flat (HB), DIN 844L, short.
Tolerances: d1: k10 / d2: h6
Order ID d1 l2 l4 d2 l1 d3
mm mm mm mm mm mm
110125.0100 12 26 36 12 83 11.5
110125.0200 16 32 42 16 92 15
110125.0300 20 38 52 20 104 19
110125.0400 25 45 63 25 121 24

Brütsch/Rüegger Tools Ltd. • Heinrich Stutz-Strasse 20 • P.O. Box • CH-8902 Urdorf • www.brw.ch 415
