HSS milling Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch

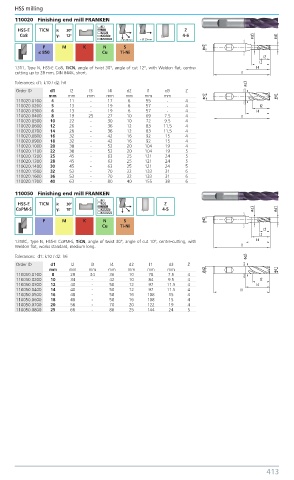

110020 Finishing end mill FRANKEN

HSS-E TiCN λ: 30º Z
Co8 γ: 12º 4-6
< Ø 28mm > Ø 29mm
P M K N S
≤ 850 Cu Ti-Ni

1311, Type N, HSS-E Co8, TiCN, angle of twist 30°, angle of cut 12°, with Weldon flat, centre-
cutting up to 28 mm, DIN 844K, short.
Tolerances: d1: k10 / d2: h6
Order ID d1 l2 l3 l4 d2 l1 d3 Z
mm mm mm mm mm mm mm
110020.0100 4 11 - 17 6 55 - 4
110020.0200 5 13 - 19 6 57 - 4
110020.0300 6 13 - 19 6 57 - 4
110020.0400 8 19 25 27 10 69 7.5 4
110020.0500 10 22 - 30 10 72 9.5 4
110020.0600 12 26 - 36 12 83 11.5 4
110020.0700 14 26 - 36 12 83 11.5 4
110020.0800 16 32 - 42 16 92 15 4
110020.0900 18 32 - 42 16 92 15 4
110020.1000 20 38 - 52 20 104 19 4
110020.1100 22 38 - 52 20 104 19 5
110020.1200 25 45 - 63 25 121 24 5
110020.1300 28 45 - 63 25 121 24 5
110020.1400 30 45 - 63 25 121 24 5
110020.1500 32 53 - 70 32 133 31 6
110020.1600 36 53 - 70 32 133 31 6
110020.1700 40 63 - 80 40 155 38 6
110050 Finishing end mill FRANKEN
HSS-E TiCN λ: 30º Z
CoPM-S γ: 10º 4-5
P M K N S
Cu Ti-Ni

1318C, Type N, HSS-E CoPM-S, TiCN, angle of twist 30°, angle of cut 10°, centre-cutting, with
Weldon flat, works standard, medium long.
Tolerances: d1: k10 / d2: h6
Order ID d1 l2 l3 l4 d2 l1 d3 Z
mm mm mm mm mm mm mm
110050.0100 8 28 34 36 10 78 7.5 4
110050.0200 10 34 - 42 10 84 9.5 4
110050.0300 12 40 - 50 12 97 11.5 4
110050.0400 14 40 - 50 12 97 11.5 4
110050.0500 16 48 - 58 16 108 15 4
110050.0600 18 48 - 58 16 108 15 4
110050.0700 20 56 - 70 20 122 19 4
110050.0800 25 68 - 86 25 144 24 5
