HSS milling Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch

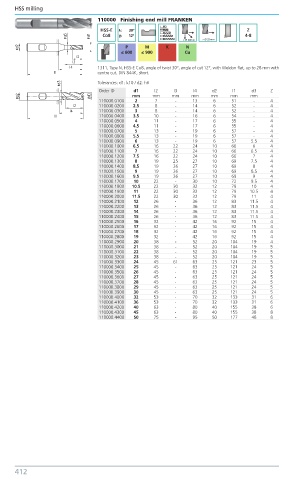

110000 Finishing end mill FRANKEN

HSS-E λ: 30º Z
Co8 γ: 12º 4-8
< Ø 28mm > Ø 29mm
P M K N
≤ 600 ≤ 900 Cu

1311, Type N, HSS-E Co8, angle of twist 30°, angle of cut 12°, with Weldon flat, up to 28 mm with
centre cut, DIN 844K, short.
Tolerances: d1: k10 / d2: h6
Order ID d1 l2 l3 l4 d2 l1 d3 Z
mm mm mm mm mm mm mm
110000.0100 2 7 - 13 6 51 - 4
110000.0200 2.5 8 - 14 6 52 - 4
110000.0300 3 8 - 14 6 52 - 4
110000.0400 3.5 10 - 16 6 54 - 4
110000.0500 4 11 - 17 6 55 - 4
110000.0600 4.5 11 - 17 6 55 - 4
110000.0700 5 13 - 19 6 57 - 4
110000.0800 5.5 13 - 19 6 57 - 4
110000.0900 6 13 - 19 6 57 5.5 4
110000.1000 6.5 16 22 24 10 66 6 4
110000.1100 7 16 22 24 10 66 6.5 4
110000.1200 7.5 16 22 24 10 66 7 4
110000.1300 8 19 25 27 10 69 7.5 4
110000.1400 8.5 19 26 27 10 69 8 4
110000.1500 9 19 26 27 10 69 8.5 4
110000.1600 9.5 19 26 27 10 69 9 4
110000.1700 10 22 - 30 10 72 9.5 4
110000.1800 10.5 22 30 32 12 79 10 4
110000.1900 11 22 30 32 12 79 10.5 4
110000.2000 11.5 22 30 32 12 79 11 4
110000.2100 12 26 - 36 12 83 11.5 4
110000.2200 13 26 - 36 12 83 11.5 4
110000.2300 14 26 - 36 12 83 11.5 4
110000.2400 15 26 - 36 12 83 11.5 4
110000.2500 16 32 - 42 16 92 15 4
110000.2600 17 32 - 42 16 92 15 4
110000.2700 18 32 - 42 16 92 15 4
110000.2800 19 32 - 42 16 92 15 4
110000.2900 20 38 - 52 20 104 19 4
110000.3000 21 38 - 52 20 104 19 5
110000.3100 22 38 - 52 20 104 19 5
110000.3200 23 38 - 52 20 104 19 5
110000.3300 24 45 61 63 25 121 23 5
110000.3400 25 45 - 63 25 121 24 5
110000.3500 26 45 - 63 25 121 24 5
110000.3600 27 45 - 63 25 121 24 5
110000.3700 28 45 - 63 25 121 24 5
110000.3800 29 45 - 63 25 121 24 5
110000.3900 30 45 - 63 25 121 24 5
110000.4000 32 53 - 70 32 133 31 6
110000.4100 36 53 - 70 32 133 31 6
110000.4200 40 63 - 80 40 155 38 6
110000.4300 45 63 - 80 40 155 38 8
110000.4400 50 75 - 95 50 177 48 8
