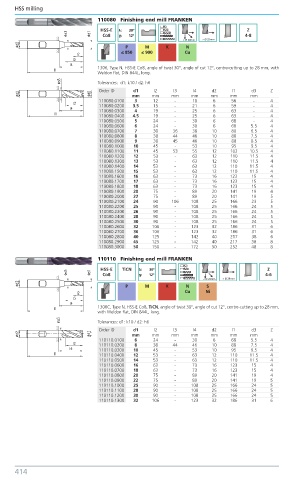

Page 423 - Benma | Blue book 5.0

HSS milling Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
110080 Finishing end mill FRANKEN

HSS-E λ: 30º Z
Co8 γ: 12º 4-8
< Ø 28mm > Ø 29mm
P M K N
≤ 850 ≤ 900 Cu

1306, Type N, HSS-E Co8, angle of twist 30°, angle of cut 12°, centre-cutting up to 28 mm, with
Weldon flat, DIN 844L, long.
Tolerances: d1: k10 / d2: h6
Order ID d1 l2 l3 l4 d2 l1 d3 Z
mm mm mm mm mm mm mm
110080.0100 3 12 - 18 6 56 - 4
110080.0200 3.5 15 - 21 6 59 - 4
110080.0300 4 19 - 25 6 63 - 4
110080.0400 4.5 19 - 25 6 63 - 4
110080.0500 5 24 - 30 6 68 - 4
110080.0600 6 24 - 30 6 68 5.5 4
110080.0700 7 30 36 38 10 80 6.5 4
110080.0800 8 38 44 46 10 88 7.5 4
110080.0900 9 38 45 46 10 88 8.5 4
110080.1000 10 45 - 53 10 95 9.5 4
110080.1100 11 45 53 55 12 102 10.5 4
110080.1200 12 53 - 63 12 110 11.5 4
110080.1300 13 53 - 63 12 110 11.5 4
110080.1400 14 53 - 63 12 110 11.5 4
110080.1500 15 53 - 63 12 110 11.5 4
110080.1600 16 63 - 73 16 123 15 4
110080.1700 17 63 - 73 16 123 15 4
110080.1800 18 63 - 73 16 123 15 4
110080.1900 20 75 - 89 20 141 19 4
110080.2000 22 75 - 89 20 141 19 5
110080.2100 24 90 106 108 25 166 23 5
110080.2200 25 90 - 108 25 166 24 5
110080.2300 26 90 - 108 25 166 24 5
110080.2400 28 90 - 108 25 166 24 5
110080.2500 30 90 - 108 25 166 24 5
110080.2600 32 106 - 123 32 186 31 6
110080.2700 36 106 - 123 32 186 31 6
110080.2800 40 125 - 142 40 217 38 6
110080.2900 45 125 - 142 40 217 38 8
110080.3000 50 150 - 172 50 252 48 8
110110 Finishing end mill FRANKEN

HSS-E TiCN λ: 30º Z
Co8 γ: 12º 4-6
< Ø 28mm > Ø 29mm
P M K N S
Cu Ni

1306C, Type N, HSS-E Co8, TiCN, angle of twist 30°, angle of cut 12°, centre-cutting up to 28 mm,
with Weldon flat, DIN 844L, long.
Tolerances: d1: k10 / d2: h6
Order ID d1 l2 l3 l4 d2 l1 d3 Z
mm mm mm mm mm mm mm
110110.0100 6 24 - 30 6 68 5.5 4
110110.0200 8 38 44 46 10 88 7.5 4
110110.0300 10 45 - 53 10 95 9.5 4
110110.0400 12 53 - 63 12 110 11.5 4
110110.0500 14 53 - 63 12 110 11.5 4
110110.0600 16 63 - 73 16 123 15 4
110110.0700 18 63 - 73 16 123 15 4
110110.0800 20 75 - 89 20 141 19 4
110110.0900 22 75 - 89 20 141 19 5
110110.1000 25 90 - 108 25 166 24 5
110110.1100 28 90 - 108 25 166 24 5
110110.1200 30 90 - 108 25 166 24 5
110110.1300 32 106 - 123 32 186 31 6
