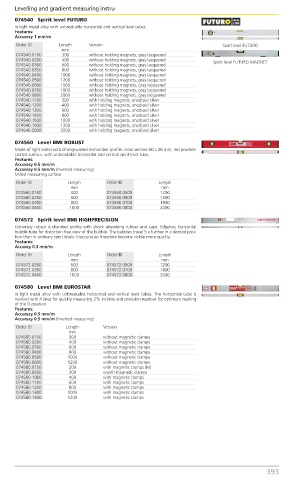

Page 399 - Benma | Blue book 5.0

Levelling and gradient measuring instru- Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
074540 Spirit level FUTURO
In light metal alloy with unbreakable horizontal and vertical level tubes.
Features:
Accuracy 1 mm/m
Order ID Length Version Spirit level FUTURO
mm
074540.0100 300 without holding magnets, gray lacquered
074540.0200 400 without holding magnets, gray lacquered Spirit level FUTURO MAGNET
074540.0300 600 without holding magnets, gray lacquered
074540.0350 800 without holding magnets, gray lacquered
074540.0400 1000 without holding magnets, gray lacquered
074540.0500 1200 without holding magnets, gray lacquered
074540.0600 1500 without holding magnets, gray lacquered
074540.0700 1800 without holding magnets, gray lacquered
074540.0800 2000 without holding magnets, gray lacquered
074540.1100 300 with holding magnets, anodised silver
074540.1200 400 with holding magnets, anodised silver
074540.1300 600 with holding magnets, anodised silver
074540.1400 800 with holding magnets, anodised silver
074540.1500 1000 with holding magnets, anodised silver
074540.1600 1200 with holding magnets, anodised silver
074540.2000 2000 with holding magnets, anodised silver
074560 Level BMI ROBUST
Made of light metal with strong-walled 4-chamber profile, cross section 60 x 26 mm, red powder-
coated surface, with unbreakable horizontal and vertical spirit level tube.
Features:
Accuracy 0.5 mm/m
Accuracy 0.5 mm/m (Inverted measuring)
Milled measuring surface
Order ID Length Order ID Length
mm mm
074560.0100 400 074560.0500 1200
074560.0200 600 074560.0600 1500
074560.0300 800 074560.0700 1800
074560.0400 1000 074560.0800 2000

074572 Spirit level BMI HIGHPRECISION
Extremely robust 4-chamber profile with shock absorbing rubber end caps. Edgeless horizontal
bubble tube for distortion free view of the bubble. The bubbles travel 5 x further in a slanted posi-
tion than in ordinary spirit levels. Inaccuracies therefore become visible more quickly.
Features:
Accuray 0.3 mm/m
Order ID Length Order ID Length
mm mm
074572.0200 600 074572.0500 1200
074572.0300 800 074572.0700 1800
074572.0400 1000 074572.0800 2000
074580 Level BMI EUROSTAR
In light metal alloy with unbreakable horizontal and vertical level tubes. The horizontal tube is
marked with 4 lines for quickly measuring 2% inclines and precision readout for optimum reading
of the O position.
Features:
Accuracy 0.5 mm/m
Accuracy 0.5 mm/m (Inverted measuring)
Order ID Length Version
mm
074580.0100 300 without magnetic clamps
074580.0200 400 without magnetic clamps
074580.0300 600 without magnetic clamps
074580.0400 800 without magnetic clamps
074580.0500 1000 without magnetic clamps
074580.0600 1200 without magnetic clamps
074580.0750 200 with magnetic clamps (M)
074580.0850 300 wwith magnetic clamps
074580.1000 400 with magnetic clamps
074580.1100 600 with magnetic clamps
074580.1200 800 with magnetic clamps
074580.1300 1000 with magnetic clamps
074580.1400 1200 with magnetic clamps

Brütsch/Rüegger Tools Ltd. • Heinrich Stutz-Strasse 20 • P.O. Box • CH-8902 Urdorf • www.brw.ch 393
