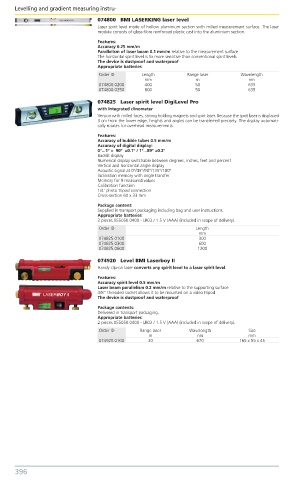

Page 402 - Benma | Blue book 5.0

Levelling and gradient measuring instru- Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
074800 BMI LASERKING laser level
Laser spirit level made of hollow aluminium section with milled measurement surface. The laser
module consists of glass-fibre reinforced plastic cast into the aluminium section.
Features:
Accuracy 0.25 mm/m
Parallelism of laser beam 0.1 mm/m relative to the measurement surface
The horizontal spirit level is 5x more sensitive than conventional spirit levels
The device is dustproof and waterproof
Appropriate batteries:
Order ID Length Range laser Wavelength
mm m nm
074800.0200 400 50 635
074800.0250 800 50 635
074825 Laser spirit level DigiLevel Pro
with integrated clinometer
Version with milled faces, strong holding magnets and spot laser. Because the spot laser is displaced
3 cm from the lower edge, heights and angles can be transferred precisely. The display automati-
cally rotates for overhead measurements.
Features:
Accuracy of bubble tubes 0.5 mm/m
Accuracy of digital display:
0°...1° + 90° ±0.1° / 1°...89° ±0.2°
Backlit display
Numerical display switchable between degrees, inches, feet and percent
Vertical and horizontal angle display
Acoustic signal at 0°/45°/90°/135°/180°
Inclination memory with angle transfer
Memory for 9 measured values
Calibration function
1/4‘ photo tripod connection
Cross-section 60 x 33 mm
Package content:
Supplied in transport packaging including bag and user instructions.
Appropriate batteries:
2 pieces 055050.0400 - LR03 / 1.5 V (AAA) (included in scope of delivery).
Order ID Length
mm
074825.0100 300
074825.0300 600
074825.0600 1200

074920 Level BMI Laserboy II
Handy clip-on laser converts any spirit level to a laser spirit level.
Features:
Accuracy spirit level 0.5 mm/m
Laser beam parallelism 0.2 mm/m relative to the supporting surface
3/8“ threaded socket allows it to be mounted on a video tripod
The device is dustproof and waterproof
Package contents:
Delivered in transport packaging.
Appropriate batteries:
2 pieces 055050.0400 - LR03 / 1.5 V (AAA) (included in scope of delivery).
Order ID Range laser Wavelength Size
m nm mm
074920.0100 30 670 165 x 55 x 45
