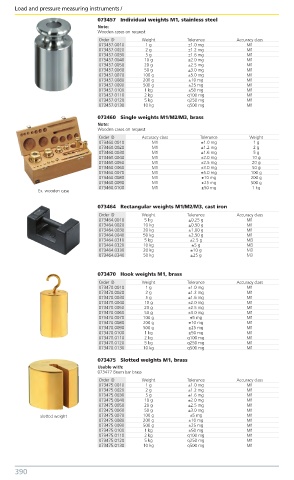

Page 396 - Benma | Blue book 5.0

Load and pressure measuring instruments / Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
073457 Individual weights M1, stainless steel
Note:
Wooden cases on request
Order ID Weight Tolerance Accuracy class
073457.0010 1 g ±1.0 mg M1
073457.0020 2 g ±1.2 mg M1
073457.0030 5 g ±1.6 mg M1
073457.0040 10 g ±2.0 mg M1
073457.0050 20 g ±2.5 mg M1
073457.0060 50 g ±3.0 mg M1
073457.0070 100 g ±5.0 mg M1
073457.0080 200 g ±10 mg M1
073457.0090 500 g ±25 mg M1
073457.0100 1 kg ±50 mg M1
073457.0110 2 kg q100 mg M1
073457.0120 5 kg q250 mg M1
073457.0130 10 kg q500 mg M1
073460 Single weights M1/M2/M3, brass
Note:
Wooden cases on request
Order ID Accuracy class Tolerance Weight
073460.0010 M1 ±1.0 mg 1 g
073460.0020 M1 ±1.2 mg 2 g
073460.0030 M1 ±1.6 mg 5 g
073460.0040 M1 ±2.0 mg 10 g
073460.0050 M1 ±2.5 mg 20 g
073460.0060 M1 ±3.0 mg 50 g
073460.0070 M1 ±5.0 mg 100 g
073460.0080 M1 ±10 mg 200 g
073460.0090 M1 ±25 mg 500 g
073460.0100 M1 ±50 mg 1 kg
Ex. wooden case

073464 Rectangular weights M1/M2/M3, cast iron
Order ID Weight Tolerance Accuracy class
073464.0010 5 kg ±0.25 g M1
073464.0020 10 kg ±0.50 g M1
073464.0030 20 kg ±1.00 g M1
073464.0040 50 kg ±2.50 g M1
073464.0310 5 kg ±2.5 g M3
073464.0320 10 kg ±5 g M3
073464.0330 20 kg ±10 g M3
073464.0340 50 kg ±25 g M3

073470 Hook weights M1, brass
Order ID Weight Tolerance Accuracy class
073470.0010 1 g ±1.0 mg M1
073470.0020 2 g ±1.2 mg M1
073470.0030 5 g ±1.6 mg M1
073470.0040 10 g ±2.0 mg M1
073470.0050 20 g ±2.5 mg M1
073470.0060 50 g ±3.0 mg M1
073470.0070 100 g ±5 mg M1
073470.0080 200 g ±10 mg M1
073470.0090 500 g ±25 mg M1
073470.0100 1 kg ±50 mg M1
073470.0110 2 kg q100 mg M1
073470.0120 5 kg q250 mg M1
073470.0130 10 kg q500 mg M1

073475 Slotted weights M1, brass
Usable with:
073477 Beam bar brass
Order ID Weight Tolerance Accuracy class
073475.0010 1 g ±1.0 mg M1
073475.0020 2 g ±1.2 mg M1
073475.0030 5 g ±1.6 mg M1
073475.0040 10 g ±2.0 mg M1
073475.0050 20 g ±2.5 mg M1
073475.0060 50 g ±3.0 mg M1
slotted weight 073475.0070 100 g ±5 mg M1
073475.0080 200 g ±10 mg M1
073475.0090 500 g ±25 mg M1
073475.0100 1 kg ±50 mg M1
073475.0110 2 kg q100 mg M1
073475.0120 5 kg q250 mg M1
073475.0130 10 kg q500 mg M1
