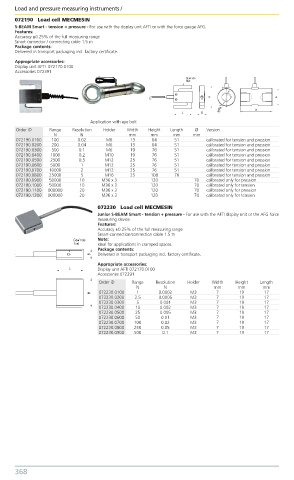

Load and pressure measuring instruments / Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
072190 Load cell MECMESIN
S-BEAM Smart - tension + pressure - For use with the display unit AFTI or with the force gauge AFG.
Features:
Accuracy ±0.25% of the full measuring range
Smart connector / connecting cable 1.5 m
Package contents:
Delivered in transport packaging incl. factory certificate.
Appropriate accessories:
Display unit AFTI 072170.0100
Accessories 072391

Application with eye bolt
Order ID Range Resolution Holder Width Height Length Ø Version
N N mm mm mm mm
072190.0100 100 0.02 M6 13 64 51 calibrated for tension and pression
072190.0200 200 0.04 M6 13 64 51 calibrated for tension and pression
072190.0300 500 0.1 M6 19 76 51 calibrated for tension and pression
072190.0400 1000 0.2 M10 19 76 51 calibrated for tension and pression
072190.0500 2500 0.5 M12 25 76 51 calibrated for tension and pression
072190.0600 5000 1 M12 25 76 51 calibrated for tension and pression
072190.0700 10000 2 M12 25 76 51 calibrated for tension and pression
072190.0800 25000 5 M16 25 108 76 calibrated for tension and pression
072190.0900 50000 10 M36 x 3 120 70 calibrated only for pression
072190.1000 50000 10 M36 x 3 120 70 calibrated only for tension
072190.1100 000000 20 M36 x 3 120 70 calibrated only for pression
072190.1200 000000 20 M36 x 3 120 70 calibrated only for tension
072230 Load cell MECMESIN
Junior S-BEAM Smart - tension + pressure - For use with the AFTI display unit or the AFG force
measuring device.
Features:
Accuracy ±0.25% of the full measuring range
Smart-connection/connection cable 1.5 m
Note:
Ideal for applications in cramped spaces.
Package contents:
Delivered in transport packaging incl. factory certificate.
Appropriate accessories:
Display unit AFTI 072170.0100
Accessories 072391
Order ID Range Resolution Holder Width Height Length
N N mm mm mm
072230.0100 1 0.0002 M3 7 19 17
072230.0200 2.5 0.0005 M3 7 19 17
072230.0300 5 0.001 M3 7 19 17
072230.0400 10 0.002 M3 7 19 17
072230.0500 25 0.005 M3 7 19 17
072230.0600 50 0.01 M3 7 19 17
072230.0700 100 0.02 M3 7 19 17
072230.0800 250 0.05 M3 7 19 17
072230.0900 500 0.1 M3 7 19 17
