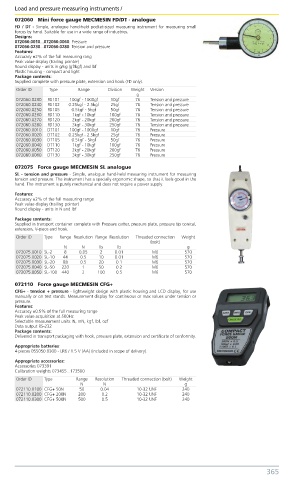

Load and pressure measuring instruments / Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
072060 Mini force gauge MECMESIN FD/DT - analogue
FD / DT - Simple, analogue hand-held pocket-sized measuring instrument for measuring small
forces by hand. Suitable for use in a wide range of industries.
Designs:
072060.0010...072060.0060: Pressure
072060.0230...072060.0280: Tension and pressure
Features:
Accuracy ±2% of the full measuring rang
Peak value display (trailing pointer)
Round display - units in g/kg (gf/kgf) and lbf
Plastic housing - compact and light
Package contents:
Supplied complete with pressure plate, extension and hook (FD only).
Order ID Type Range Division Weight Version
g
072060.0230 FD101 100gf - 1000gf 10gf 76 Tension and pressure
072060.0240 FD102 0.25kgf - 2.5kgf 25gf 76 Tension and pressure
072060.0250 FD105 0.5kgf - 5kgf 50gf 76 Tension and pressure
072060.0260 FD110 1kgf - 10kgf 100gf 76 Tension and pressure
072060.0270 FD120 2kgf - 20kgf 200gf 76 Tension and pressure
072060.0280 FD130 3kgf - 30kgf 250gf 76 Tension and pressure
072060.0010 DT101 100gf - 1000gf 10gf 76 Pressure
072060.0020 DT102 0.25kgf - 2.5kgf 25gf 76 Pressure
072060.0030 DT105 0.5kgf - 5kgf 50gf 76 Pressure
072060.0040 DT110 1kgf - 10kgf 100gf 76 Pressure
072060.0050 DT120 2kgf - 20kgf 200gf 76 Pressure
072060.0060 DT130 3kgf - 30kgf 250gf 76 Pressure
072075 Force gauge MECMESIN SL analogue
SL - tension and pressure - Simple, analogue hand-held measuring instrument for measuring
tension and pressure. The instrument has a specially ergonomic shape, so that it feels good in the
hand. The instrument is purely mechanical and does not require a power supply.
Features:
Accuracy ±2% of the full measuring range
Peak value display (trailing pointer)
Round display - units in N and lbf
Package contents:
Supplied in transport container complete with Pressure cutter, pressure plate, pressure tip conical,
extension, V-piece and hook.
Order ID Type Range Resolution Range Resolution Threaded connection Weight
(bolt)
N N lb lb g
072075.0010 SL-2 8 0.05 2 0.01 M6 570
072075.0020 SL-10 44 0.5 10 0.01 M6 570
072075.0030 SL-20 88 0.5 20 0.1 M6 570
072075.0040 SL-50 220 1 50 0.2 M6 570
072075.0050 SL-100 440 2 100 0.5 M6 570
072110 Force gauge MECMESIN CFG+
CFG+ - tension + pressure - lightweight design with plastic housing and LCD display, for use
manually or on test stands. Measurement display for continuous or max values under tension or
pressure.
Features:
Accuracy ±0.5% of the full measuring range
Peak value acquisition at 500Hz
Selectable measurement units: N, mN, kgf, lbf, ozf
Data output RS-232
Package contents:
Delivered in transport packaging with hook, pressure plate, extension and certificate of conformity.
Appropriate batteries:
4 pieces 055050.0300 - LR6 / 1.5 V (AA) (included in scope of delivery).
Appropriate accessories:
Accessories 073391
Calibration weights 073455...173500
Order ID Type Range Resolution Threaded connection (bolt) Weight
N N g
072110.0100 CFG+ 50N 50 0.04 10-32 UNF 240
072110.0200 CFG+ 200N 200 0.2 10-32 UNF 240
072110.0300 CFG+ 500N 500 0.5 10-32 UNF 240
