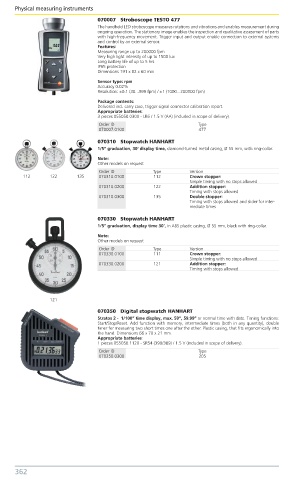

Page 368 - Benma | Blue book 5.0

Physical measuring instruments Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
070007 Stroboscope TESTO 477
The handheld LED stroboscope measures rotations and vibrations and enables measurement during
ongoing operation. The stationary image enables the inspection and qualitative assessment of parts
with high-frequency movement. Trigger input and output enable connection to external systems
and control by an external sensor.
Features:
Measuring range up to 200000 fpm
Very high light intensity of up to 1500 lux
Long battery life of up to 5 hrs
IP65 protection
Dimensions 191 x 82 x 60 mm
Sensor type: rpm
Accuracy 0.02%
Resolution: ±0.1 (30...999 fpm) / ±1 (1000...200000 fpm)
Package contents:
Delivered incl. carry case, trigger signal connector calibration report.
Appropriate batteries:
3 pieces 055050.0300 - LR6 / 1.5 V (AA) (included in scope of delivery).
Order ID Type
070007.0100 477
070310 Stopwatch HANHART
1/5“ graduation, 30‘ display time, diamond-turned metal casing, Ø 55 mm, with ring-collar.
Note:
Other models on request
Order ID Type Version
112 122 135 070310.0100 112 Crown stopper:
Simple timing with no stops allowed
070310.0200 122 Addition stopper:
Timing with stops allowed
070310.0300 135 Double stopper:
Timing with stops allowed and slider for inter-
mediate times
070330 Stopwatch HANHART
1/5“ graduation, display time 30‘, in ABS plastic casing, Ø 55 mm, black with ring-collar.
Note:
Other models on request
Order ID Type Version
070330.0100 111 Crown stopper:
Simple timing with no stops allowed
070330.0200 121 Addition stopper:
Timing with stops allowed

121
070350 Digital stopwatch HANHART
Stratos 2 - 1/100“ time display, max. 59‘‘, 59.99“ or normal time with date. Timing functions:
Start/Stop/Reset. Add function with memory, intermediate times (both in any quantity), double
timer for measuring two short times one after the other. Plastic casing, that fits ergonomically into
the hand. Dimensions 66 x 70 x 21 mm.
Appropriate batteries:
1 pieces 055050.1120 - SR54 (390/389) / 1.5 V (included in scope of delivery).
Order ID Type
070350.0300 205
