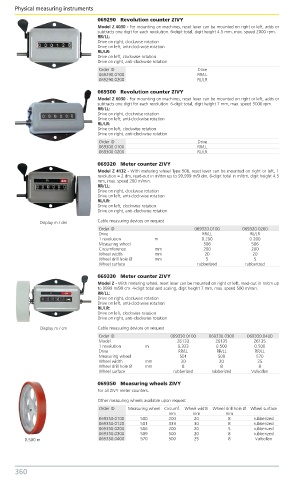

069290 Revolution counter ZIVY
Model Z 4030 - For mounting on machines, reset lever can be mounted on right or left, adds or
subtracts one digit for each revolution. 6-digit total, digit height 4.5 mm, max. speed 2000 rpm.
RR/LL:
Drive on right, clockwise rotation
Drive on left, anti-clockwise rotation
RL/LR:
Drive on left, clockwise rotation
Drive on right, anti-clockwise rotation
Order ID Drive
069290.0100 RR/LL
069290.0200 RL/LR
069300 Revolution counter ZIVY
Model Z 6030 - For mounting on machines, reset lever can be mounted on right or left, adds or
subtracts one digit for each revolution. 6-digit total, digit height 7 mm, max. speed 5000 rpm.
RR/LL:
Drive on right, clockwise rotation
Drive on left, anti-clockwise rotation
RL/LR:
Drive on left, clockwise rotation
Drive on right, anti-clockwise rotation
Order ID Drive
069300.0100 RR/LL
069300.0200 RL/LR
069320 Meter counter ZIVY
Model Z 4132 - With metering wheel Type 506, reset lever can be mounted on right or left, 1
revolution = 2 dm, read-out in m/dm up to 99,999 m/9 dm. 6-digit total in m/dm, digit height 4.5
mm, max. speed 200 m/min.
RR/LL:
Drive on right, clockwise rotation
Drive on left, anti-clockwise rotation
RL/LR:
Drive on left, clockwise rotation
Drive on right, anti-clockwise rotation
Display m / dm Cable measuring devices on request
Order ID 069320.0100 069320.0200
Drive RR/LL RL/LR
1 revolution m 0.200 0.200
Measuring wheel 506 506
Circumference mm 200 200
Wheel width mm 20 20
Wheel drill hole Ø mm 5 5
Wheel surface rubberized rubberized
069330 Meter counter ZIVY
Model Z - With metering wheel, reset lever can be mounted on right or left, read-out in m/cm up
to 9999 m/99 cm. 4-digit total and scaling, digit height 7 mm, max. speed 500 m/min.
RR/LL:
Drive on right, clockwise rotation
Drive on left, anti-clockwise rotation
RL/LR:
Drive on left, clockwise rotation
Drive on right, anti-clockwise rotation
Display m / cm Cable measuring devices on request
Order ID 069330.0100 069330.0300 069330.0400
Model Z6133 Z6135 Z6135
1 revolution m 0.333 0.500 0.500
Drive RR/LL RR/LL RR/LL
Measuring wheel 501 509 570
Wheel width mm 30 20 25
Wheel drill hole Ø mm 8 8 8
Wheel surface rubberized rubberized Vulkollan
069350 Measuring wheels ZIVY
For all ZIVY meter counters.
Other measuring wheels available upon request
Order ID Measuring wheel Circumf. Wheel width Wheel drill hole Ø Wheel surface
mm mm mm
069350.0100 500 200 20 8 rubberized
069350.0120 501 333 30 8 rubberized
069350.0200 506 200 20 5 rubberized
069350.0300 509 500 20 8 rubberized
0.500 m 069350.0400 570 500 25 8 Vulkollan
