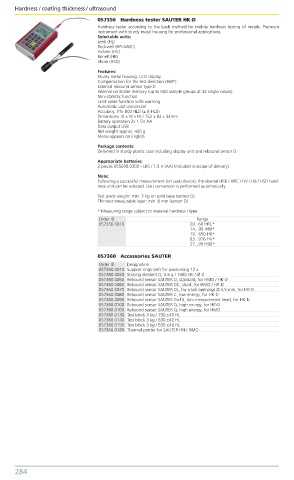

Page 290 - Benma | Blue book 5.0

Hardness / coating thickness / ultrasound Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
057356 Hardness tester SAUTER HK-D
Hardness tester according to the Leeb method for mobile hardness testing of metals. Premium
instrument with sturdy metal housing for professional applications.
Selectable units:
Leeb (HL)
Rockwell (HR-A/B/C)
Vickers (HV)
Brinell (HB)
Shore (HSD)
Features:
Sturdy metal housing, LCD display
Compensation for the test direction (360°)
External rebound sensor type D
Internal controller memory (up to 600 sample groups at 32 single values)
Mini statistic function
Limit value function with warning
Automatic unit conversion
Accuracy: 1% 800 HLD (± 8 HLD)
Dimensions (L x W x H) / 152 x 84 x 34mm
Battery operation 2x 1.5V AA
Data output USB
Net weight approx. 400 g
Menu appears on English
Package contents:
Delivered in sturdy plastic case including display unit and rebound sensor D.
Appropriate batteries:
2 pieces 055050.0300 - LR6 / 1.5 V (AA) (included in scope of delivery).
Note:
Following a successful measurement (on Leeb device), the desired HRB / HRC / HV / HB / HSD hard-
ness unit can be selected. Unit conversion is performed automatically.
Test piece weight: min. 3 kg on solid base (sensor D)
Thinnest measurable layer: min. 8 mm (sensor D)
* Measuring range subject to material hardness / type
Order ID Range
057356.0010 20...68 HRC*
14...99 HRB*
19...650 HB*
83...976 HV*
27...99 HSD*
057360 Accessories SAUTER
Order ID Designation
057360.0010 Support rings (set) for positioning 12 x
057360.0020 Striking element D, 5.5 g / 1600 HV / Ø 3
057360.0050 Rebound sensor SAUTER D, standard, for HMO / HK-D
057360.0060 Rebound sensor SAUTER DC, short, for HMO / HK-D
057360.0070 Rebound sensor SAUTER DL, for small openings Ø 4.5 mm, for HK-D
057360.0080 Rebound sensor SAUTER C, low energy, for HK-D
057360.0090 Rebound sensor SAUTER D+15, slim measurement head, for HK-D
057360.0100 Rebound sensor SAUTER G, high energy, for HK-D
057360.0105 Rebound sensor SAUTER G, high energy, for HMO
057360.0130 Test block 3 kg / 790 ±40 HL
057360.0140 Test block 3 kg / 630 ±40 HL
057360.0150 Test block 3 kg / 530 ±40 HL
057360.0180 Thermal printer for SAUTER HN / HMO
