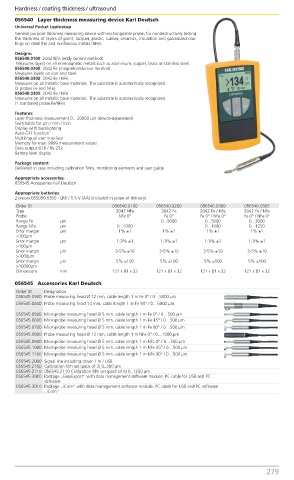

056540 Layer thickness measuring device Karl Deutsch
Universal Pocket Leptoskop
General purpose thickness measuring device with exchangeable probe, for nondestructively testing
the thickness of layers of paint, lacquer, plastic, rubber, ceramics, insulation and galvanized coa-
tings on steel (Fe) and nonferrous metals (NFe).
Designs:
056540.0100: 2042 NFe (eddy current method):
Measures layers on all nonmagnetic metals such as aluminium, copper, brass or stainless steel.
056540.0200: 2042 Fe (magnetoinductive method):
Measures layers on iron and steel.
056540.0300: 2042 Fe / NFe
Measures on all metallic base materials. The substrate is automatically recognized.
(2 probes Fe and NFe)
056540.0305: 2042 Fe / NFe
Measures on all metallic base materials. The substrate is automatically recognized.
(1 combined probe Fe/NFe)
Features:
Layer thickness measurement 0…20000 µm (device-dependent)
Switchable for µm / mm / Inch
Display with backlighting
Auto-OFF function
Multilingual user interface
Memory for max. 9999 measurement values
Data output USB / RS-232
Battery level display
Package content:
Delivered in case including calibration films, monitoring elements and user guide.
Appropriate accessories:
056545 Accessories Karl Deutsch
Appropriate batteries:
2 pieces 055050.0300 - LR6 / 1.5 V (AA) (included in scope of delivery).
Order ID 056540.0100 056540.0200 056540.0300 056540.0305
Type 2042 NFe 2042 Fe 2042 Fe / NFe 2042 Fe / NFe
Probe NFe 0° Fe 0° Fe 0° / NFe 0° Fe 0° / NFe 0°
Range Fe µm 0...5000 0...5000 0...3000
Range NFe µm 0...1000 0...1000 0...1250
Error margin µm 1% ±1 1% ±1 1% ±1 1% ±1
<100µm
Error margin µm 1-3% ±1 1-3% ±1 1-3% ±1 1-3% ±1
>100µm
Error margin µm 3-5% ±10 3-5% ±10 3-5% ±10 3-5% ±10
>1000µm
Error margin µm 5% ±100 5% ±100 5% ±100 5% ±100
>10000µm
Dimensions mm 121 x 81 x 32 121 x 81 x 32 121 x 81 x 32 121 x 81 x 32
056545 Accessories Karl Deutsch
Order ID Designation
056545.0300 Probe measuring head Ø 12 mm, cable length 1 m Fe 0° / 0…5000 µm
056545.0400 Probe measuring head 14 mm, cable length 1 m Fe 90° / 0…5000 µm
056545.0500 Microprobe measuring head Ø 5 mm, cable length 1 m Fe 0° / 0…500 µm
056545.0600 Microprobe measuring head Ø 5 mm, cable length 1 m Fe 45° / 0…500 µm
056545.0700 Microprobe measuring head Ø 5 mm, cable length 1 m Fe 90° / 0…500 µm
056545.0800 Probe measuring head Ø 12 mm, cable length 1 m NFe 0° / 0…1000 µm
056545.0900 Microprobe measuring head Ø 5 mm, cable length 1 m NFe 0° / 0…500 µm
056545.1000 Microprobe measuring head Ø 5 mm, cable length 1 m NFe 45° / 0…500 µm
056545.1100 Microprobe measuring head Ø 5 mm, cable length 1 m NFe 90° / 0…500 µm
056545.2000 Signal line including driver 1 m / USB
056545.2100 Calibration film set (pack of 2) 0..300 µm
056545.2110 056545.2110 Calibration film set (pack of 6) 0..1250 µm
056545.3000 Package „EasyExport“ with data management software module, PC cable for USB and PC
software
056545.3010 Package „iCom“ with data management software module, PC cable for USB and PC software
„iCom“
